Product features
Precision Socket Strips Angled 2.54 mm Series 009
Angled socket strips with a height of 2.54 / 5.08mm

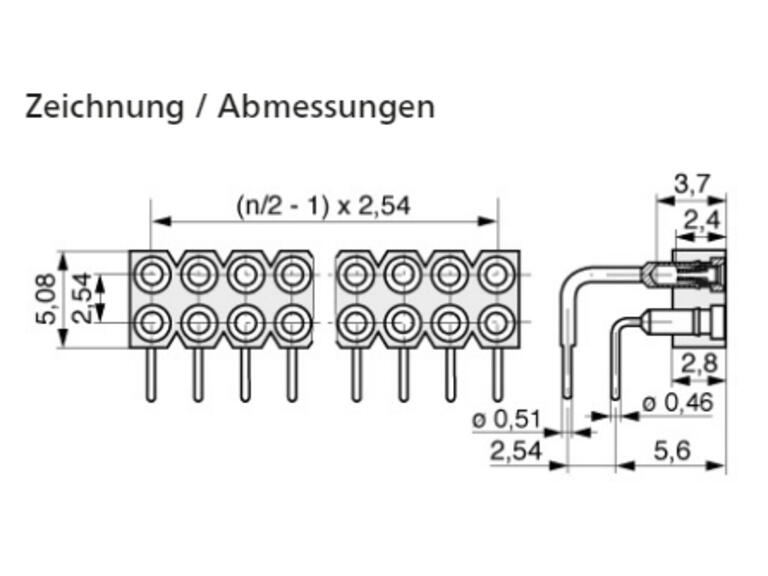

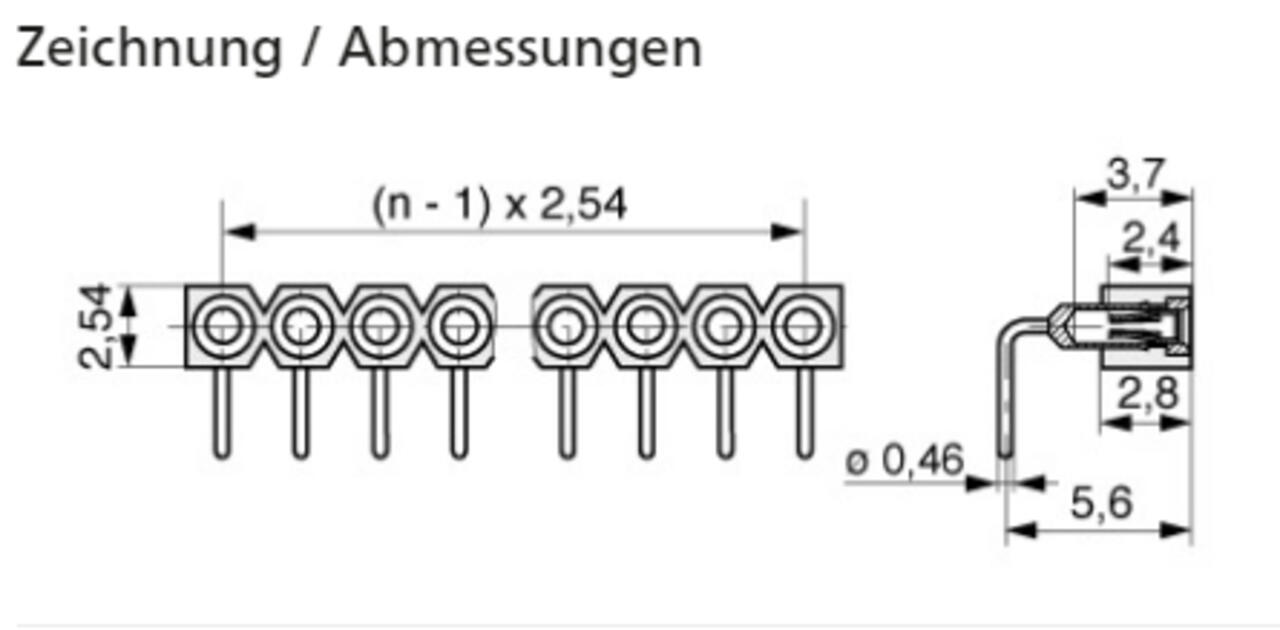

Available as single-row socket strip (SIL) or double-row socket strip (DIL)
Further technical data and versions or pin counts not listed here can be found in datasheets/product catalogs in the download area.
Please feel free to ask us!
Specifications & Downloads
- Raster
- 2.54 mm
- Kontaktmaterial
- Copper alloy
- Veredelung Kontakt
- Sn (tin plating)
- Variante des Sockels
- Standardsockel
- Ausrichtung zu PCB
- Horizontal (Parallel)
- Leiterplattenanschluss
- THT
- Betriebstemperatur
- -55°C bis + 125°C
- Isolationsmaterial
- Hochtemperaturfestes Thermoplast UL94V-0
- Nennstrom
- 3
- Nennspannung
- 150 VRMS / VDC / Luft- und Kriechstrecken beachten
- Spannungsfestigkeit
- 1'000 VRMS für 1 Minute
- Marke
- MPE-Garry
- Downloads
- MPE-Garry_Serie009.pdf
Filter
| Amount | Item No. | Description | On stock | Variante | Polzahl | Abstand D (E) | Sockellayout | VE | Unit |
|---|---|---|---|---|---|---|---|---|---|
|
|
009-1-030-D-X0STF-XS0 | MS 30 STG RAU |
|
Sockelstreifen 1-reihig | 30 | --- | SIL (Single-in-line) | 1 | Stk |
|
|
009-2-060-D-X0STF-XS0 | MSD 60 STG RAU |
|
Sockelstreifen 2-reihig | 60 | 2.54 mm | DIL (Dual-in-line) | 1 | Stk |
