Product features
Precision Socket Strips 2.54 mm Series 220

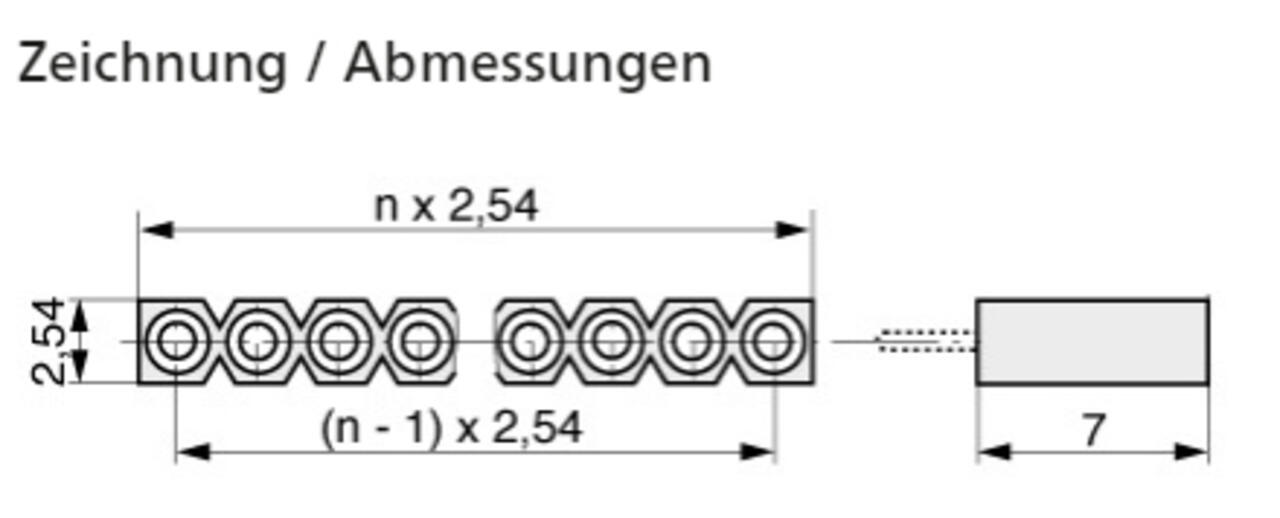

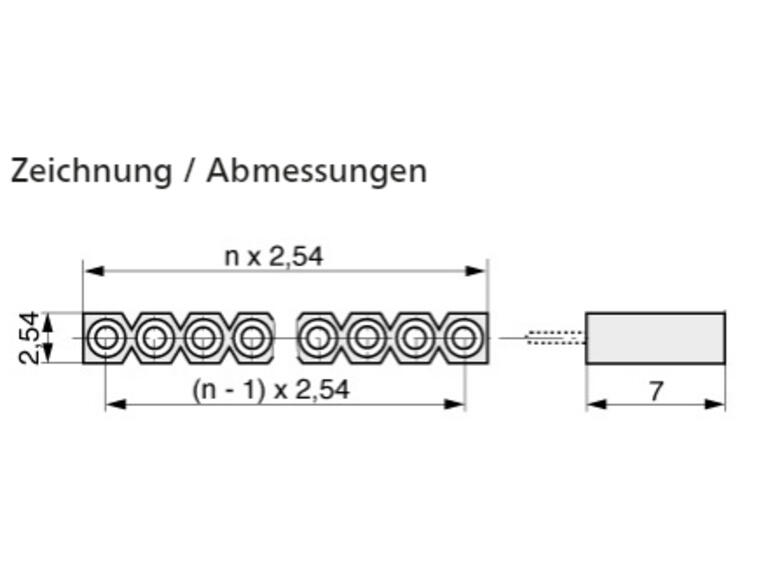

Single-row socket strips with 4.20 mm height (variant 1 “-1-“) or 7.00 mm height (variant 2 “-2-“). Ideal for mounting display modules.
Available as single-row socket strips (SIL) standing (vertical) with height 4.2mm or 7.00mm
Further technical data and versions or pin counts not listed here can be found in datasheets/product catalogs in the download area.
Please feel free to ask us!
Specifications & Downloads
- Variante
- Sockelstreifen 1-reihig
- Raster
- 2.54 mm
- Kontaktmaterial
- Copper alloy
- Veredelung Kontakt
- Sn (tin plating)
- Variante des Sockels
- Standardsockel
- Kontakttyp
- Standard B
- Ausrichtung zu PCB
- Vertikal
- Leiterplattenanschluss
- THT
- Betriebstemperatur
- -55°C bis + 125°C
- Sockellayout
- SIL (Single-in-line)
- Isolationsmaterial
- Hochtemperaturfestes Thermoplast UL94V-0
- Verpackungsart
- Standard (Schüttgut)
- Nennstrom
- 3
- Nennspannung
- 150 VRMS / VDC / Luft- und Kriechstrecken beachten
- Spannungsfestigkeit
- 1'000 VRMS für 1 Minute
- Marke
- MPE-Garry
- Downloads
- MPE-Garry_Serie220.pdf
Filter
| Amount | Item No. | Description | On stock | Polzahl | Abmessung A | VE | Unit |
|---|---|---|---|---|---|---|---|
|
|
220-1-014-D-B1STF-XS0 | BL 10-014 420 4GU |
|
14 | 4.2mm | 1 | Stk |
|
|
220-2-020-D-A7MTF-XS0 | BL 10-020 6GU |
|
20 | 7mm | 111 | Stk |
