Product features

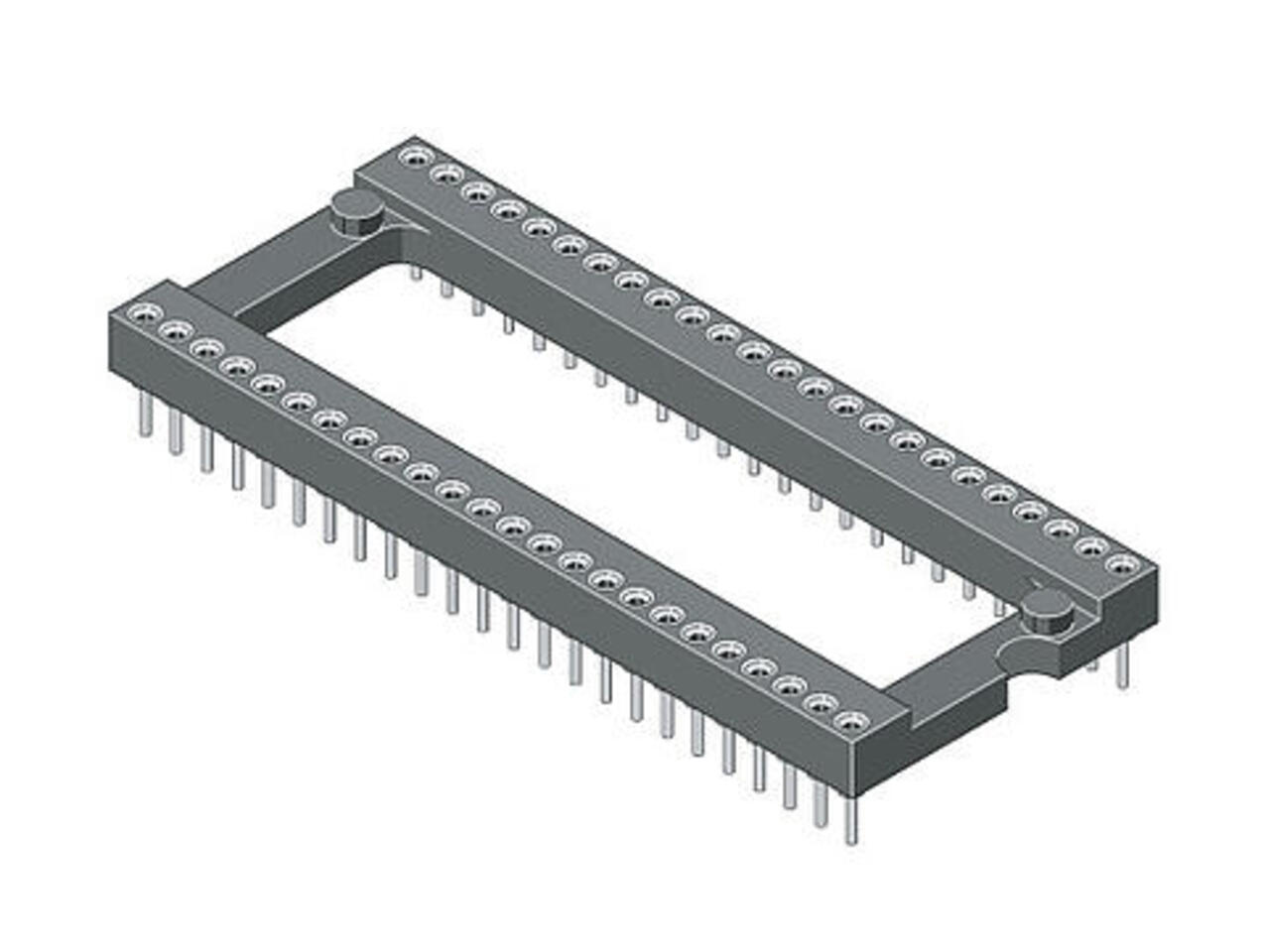

Shrink DIP Sockets and Socket Strips 1.778 mm Series 012
IC sockets and socket strips in Shrink-DIP (1.778 mm) pitch
Further technical data and versions or pin counts not listed here can be found in datasheets/product catalogs in the download area.
Please feel free to ask us!
Specifications & Downloads
- Variante
- IC Sockel
- Raster
- 1.778 mm
- Kontaktmaterial
- Copper alloy
- Veredelung Kontakt
- Sn (tin plating)
- Variante des Sockels
- Standardsockel
- Kontakttyp
- A5 (4.2/3.17mm)
- Ausrichtung zu PCB
- Vertikal
- Leiterplattenanschluss
- THT
- Betriebstemperatur
- -55°C bis + 125°C
- Isolationsmaterial
- Hochtemperaturfestes Thermoplast UL94V-0
- Nennstrom
- 3
- Nennspannung
- 150 VRMS / VDC / Luft- und Kriechstrecken beachten
- Spannungsfestigkeit
- 1'000 VRMS für 1 Minute
- Marke
- MPE-Garry
- Downloads
- MPE-Garry_Serie012.pdf
Filter

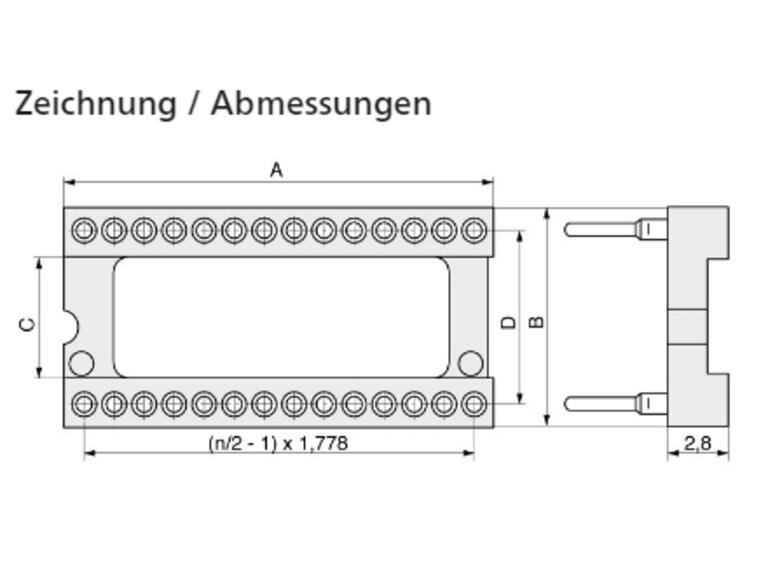

| Amount | Item No. | Description | On stock | Polzahl | Abstand D (E) | Abmessung A | Abmessung B | Abmessung C | Sockellayout | VE | Unit |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
012-2-064-6-A5STF-XS0 | MP 64.6 STG RM 1,778U |
|
64 | 19.05mm | 57.3mm | 21.5mm | 14.25mm | DIL (Dual-in-line) | 9 | Stk |
|
|

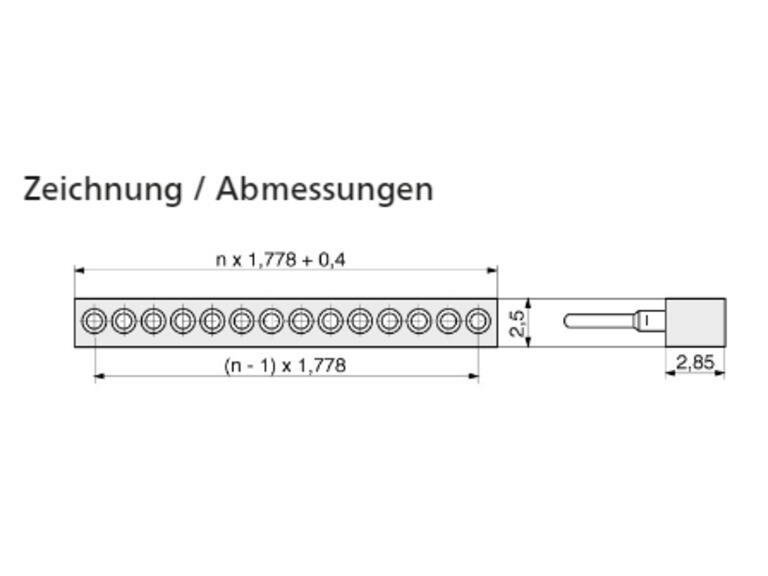

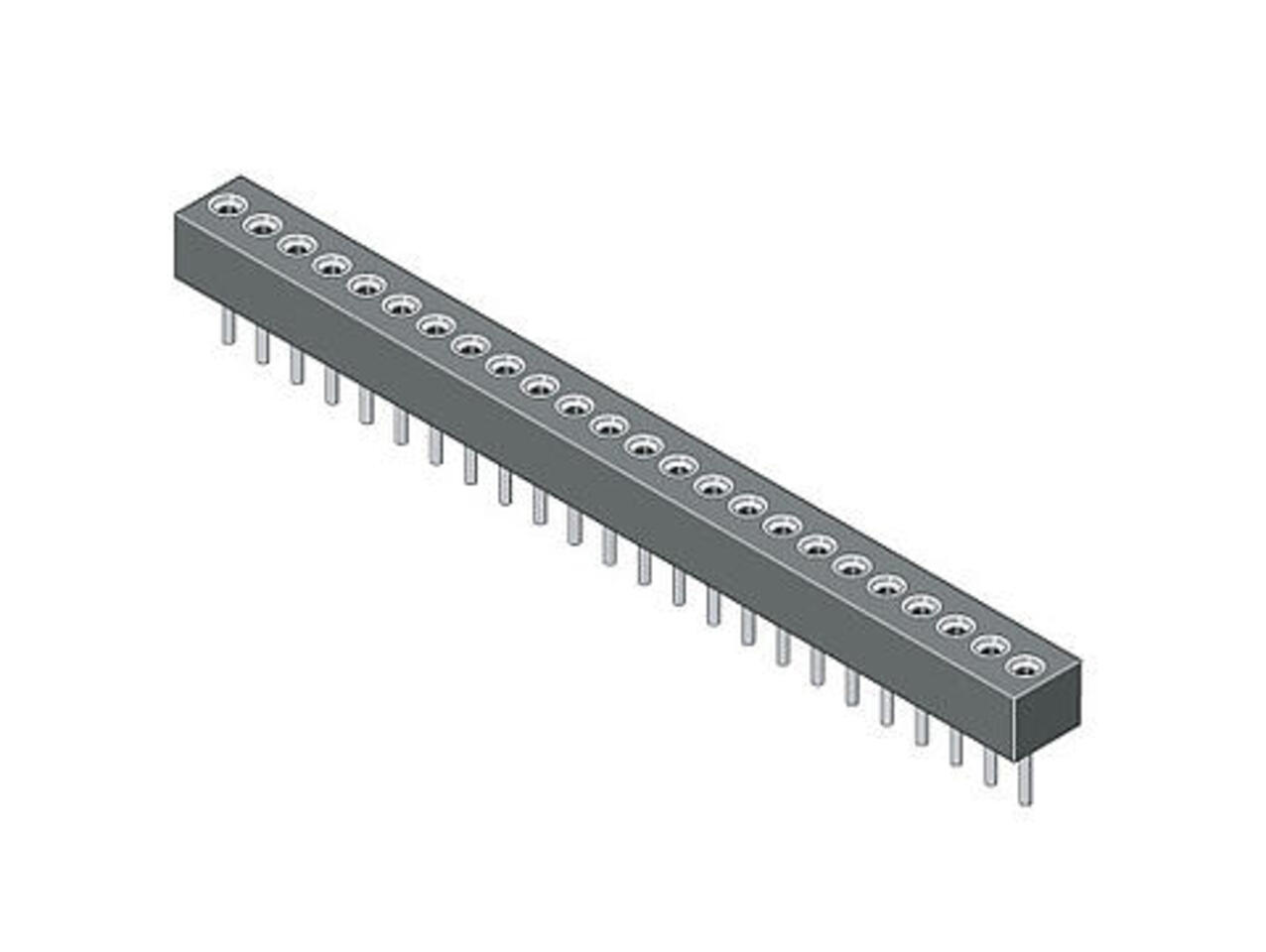

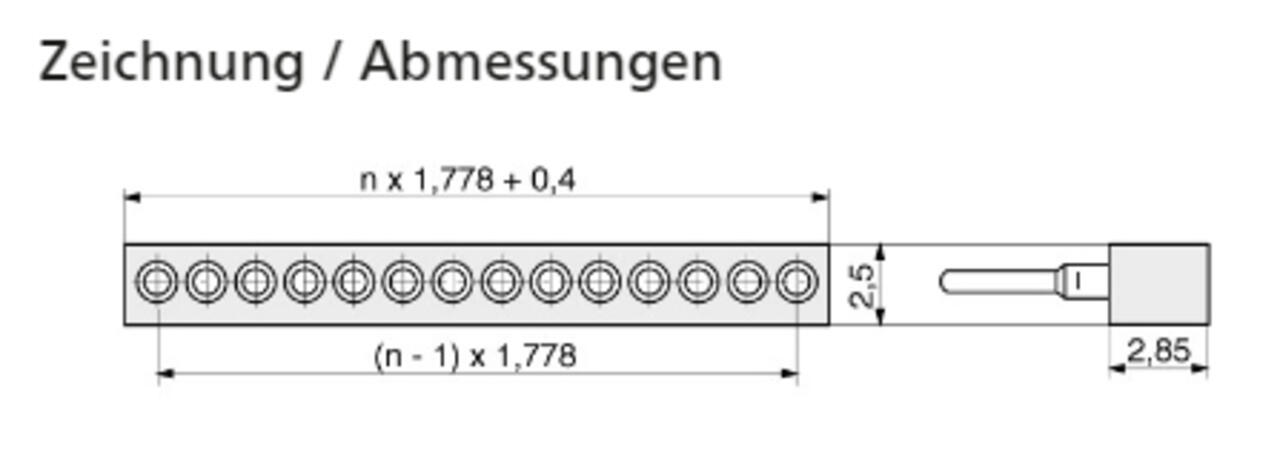

012-1-032-0-A5STF-XS0 | MS 32 STG RM 1,778U |
|
32 | --- | 0 | 0 | 0 | SIL (Single-in-line) | 1 | Stk |
