Product features
Precision Contacts on Carrier Tape 2.54 mm Series 080
Peel-away carrier, socket contacts on a flexible plastic film. This arrangement also allows easy implementation of any customer-specific layouts.

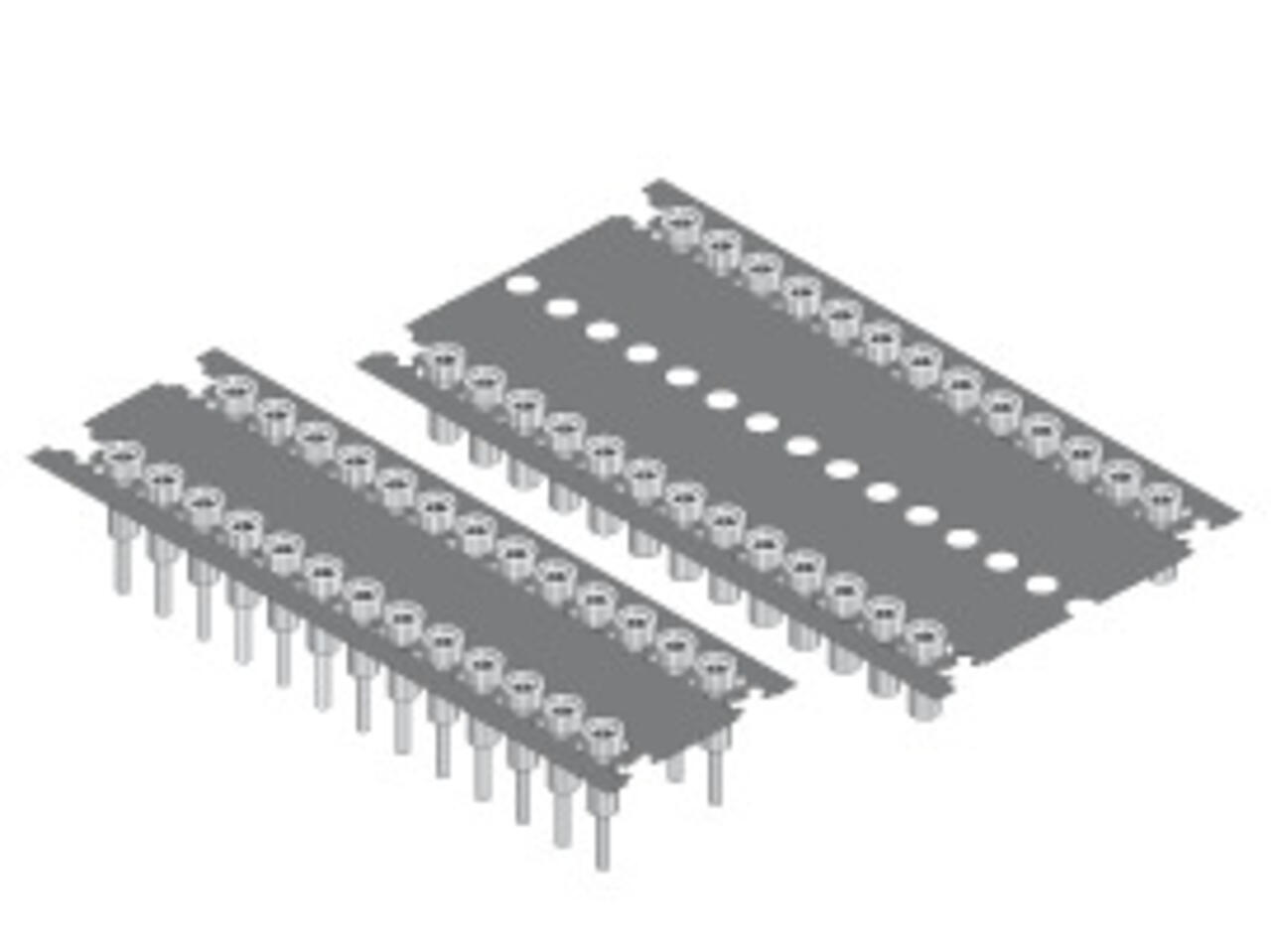

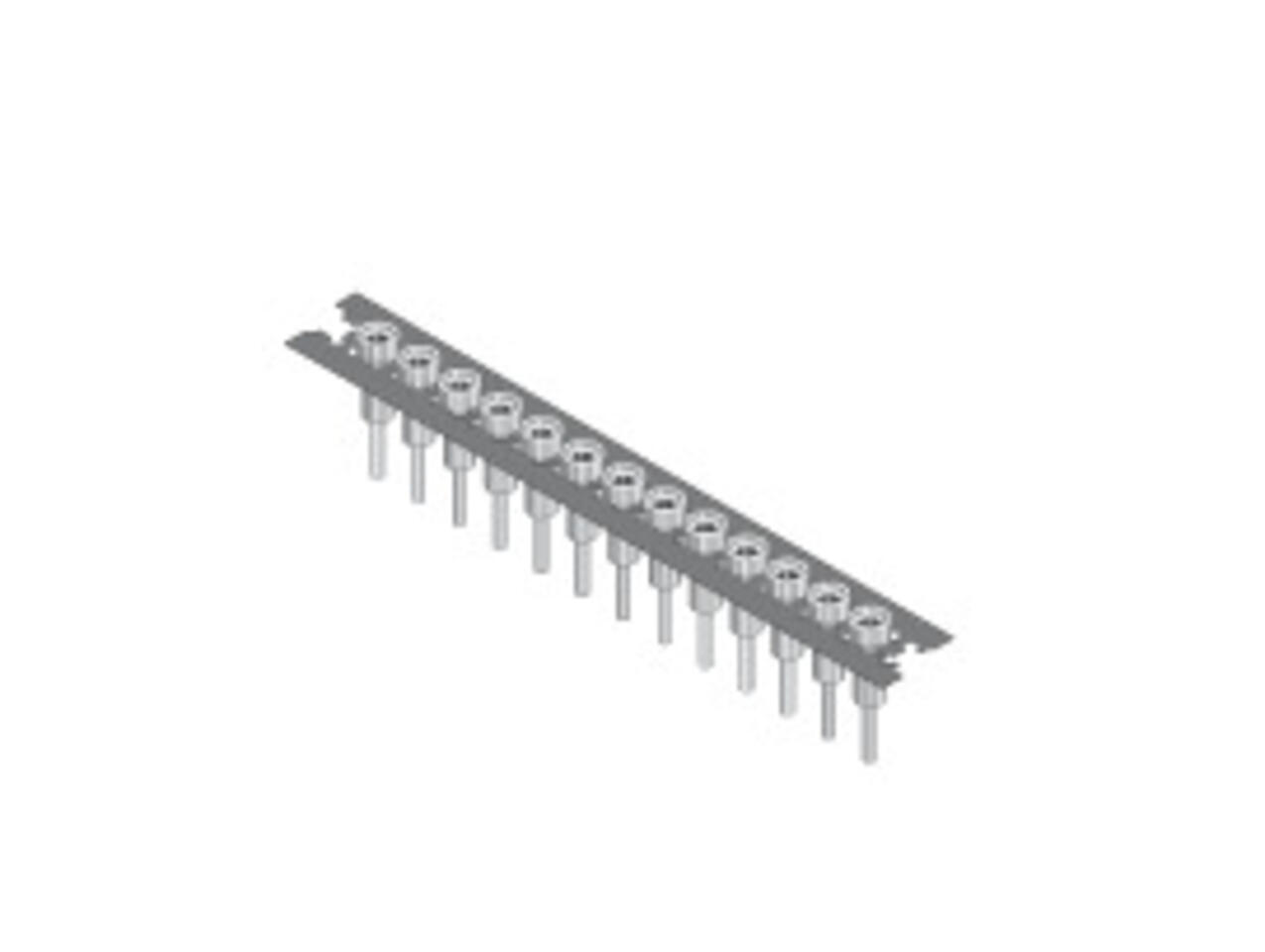

Available as single-row socket strip (SIL) standing (vertical) or DIL carrier sockets
Further technical data and versions or pin counts not listed here can be found in datasheets/product catalogs in the download area.
Please feel free to ask us!
Specifications & Downloads
- Variante
- Sockelstreifen 1-reihig
- Raster
- 2.54 mm
- Kontaktmaterial
- Copper alloy
- Veredelung Kontakt
- Sn (tin plating)
- Variante des Sockels
- Standardsockel
- Kontakttyp
- For Carrier MCS+S (SH)
- Ausrichtung zu PCB
- Vertikal
- Leiterplattenanschluss
- THT
- Betriebstemperatur
- -55°C bis + 125°C
- Nennstrom
- 3
- Nennspannung
- 150 VRMS / VDC / Luft- und Kriechstrecken beachten
- Spannungsfestigkeit
- 1'000 VRMS für 1 Minute
- Marke
- MPE-Garry
- Downloads
- MPE-Garry_Serie080.pdf
Filter
| Amount | Item No. | Description | On stock | Polzahl | Abstand D (E) | Sockellayout | VE | Unit |
|---|---|---|---|---|---|---|---|---|
|
|
080-2-020-3-C8STG-ZS0 | MC S+S 20.3 STG SH 2U |
|
20 | 2.54 mm | DIL (Dual-in-line) | 1 | Stk |
|
|
080-1-007-0-C8STG-ZS0 | MCS+S 0007.1STG SH2U |
|
7 | --- | SIL (Single-in-line) | 1'000 | Stk |
|
|
080-1-008-0-C8STG-ZS0 | MCS+S 0008.1STG SH2U |
|
8 | --- | SIL (Single-in-line) | 1'000 | Stk |
|
|
080-1-01K-0-C8STG-ZS0 | MCS+S 1000.1STG SH2U |
|
1000 | --- | SIL (Single-in-line) | 1'000 | Stk |
