Product features

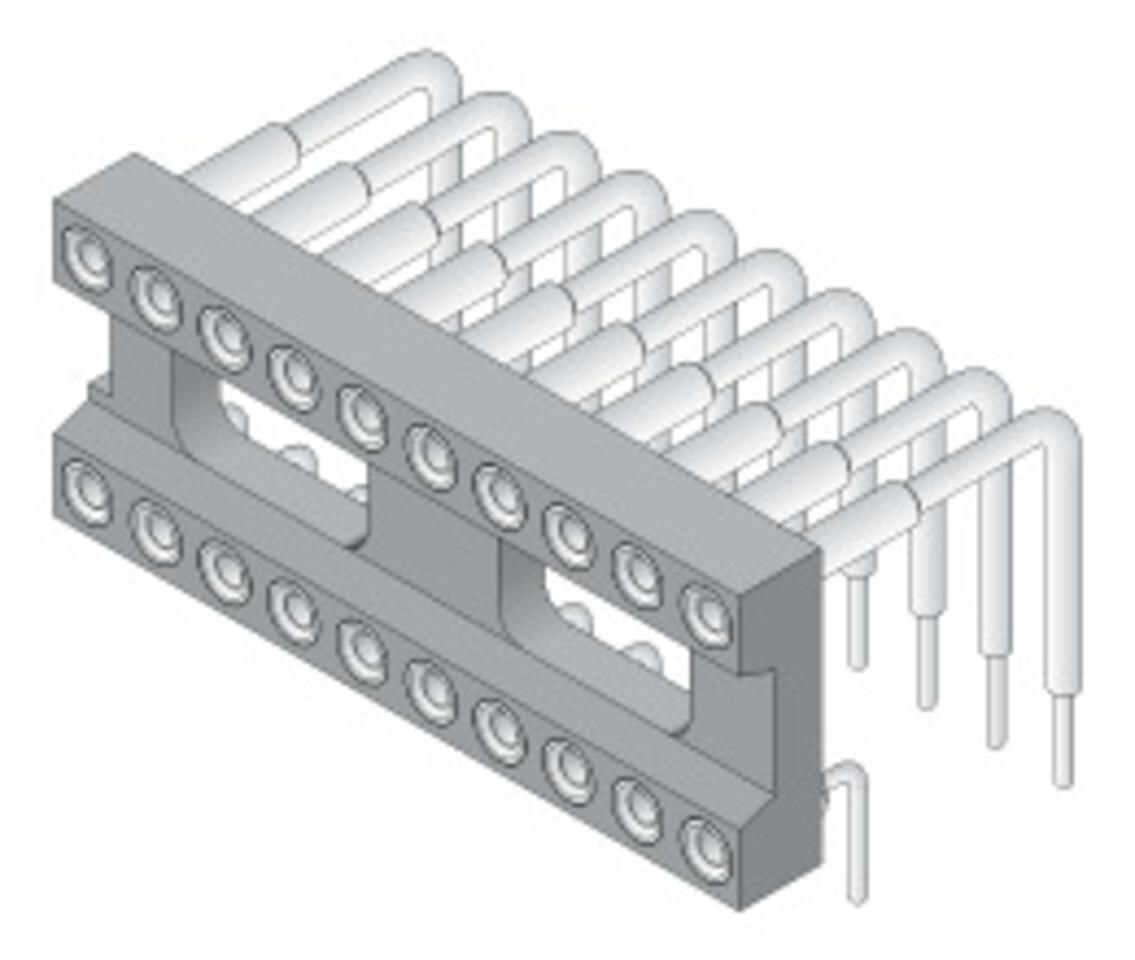

Precision Display Sockets 2.54 mm Series 218 Variant 1
Horizontal DIL socket for mounting display modules.
Further technical data and versions or pin counts not listed here can be found in datasheets/product catalogs in the download area.
Please feel free to ask us!
Specifications & Downloads
- Variante
- IC Sockel
- Raster
- 2.54 mm
- Kontaktmaterial
- Copper alloy
- Veredelung Kontakt
- Sn (tin plating)
- Variante des Sockels
- Standardsockel
- Kontakttyp
- Standard B
- Ausrichtung zu PCB
- Horizontal (Parallel)
- Leiterplattenanschluss
- THT
- Betriebstemperatur
- -55°C bis + 125°C
- Sockellayout
- DIL (Dual-in-line)
- Isolationsmaterial
- Hochtemperaturfestes Thermoplast UL94V-0
- Nennstrom
- 3
- Nennspannung
- 150 VRMS / VDC / Luft- und Kriechstrecken beachten
- Spannungsfestigkeit
- 1'000 VRMS für 1 Minute
- Marke
- MPE-Garry
- Downloads
- MPE-Garry_Serie218.pdf
Filter

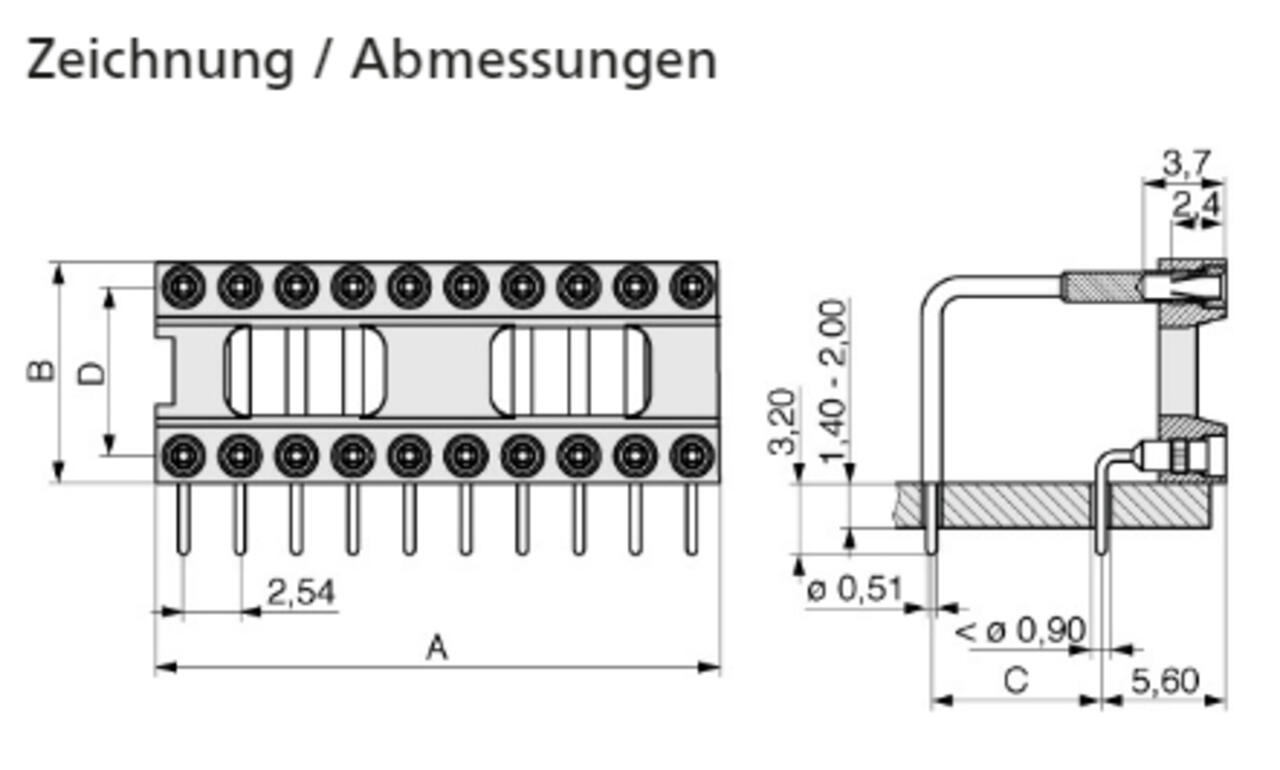

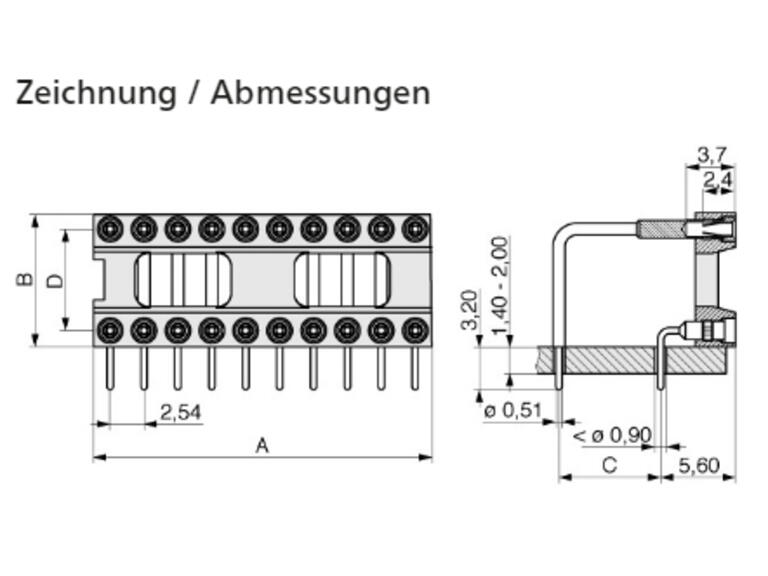

| Amount | Item No. | Description | On stock | Polzahl | Abstand D (E) | Abmessung A | Abmessung B | Abmessung C | VE | Unit |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
218-1-010-2-X0STF-XT0 | MP-LED 10.2 STG U |
|
10 | 5.08 mm | 12.62mm | 7.6mm | 5.08mm | 42 | Stk |
|
|
218-1-014-3-X0STF-XT0 | MP-LED 14.3 STG U |
|
14 | 7.62 mm | 17.7mm | 10.08mm | 7.62mm | 29 | Stk |
