Product features

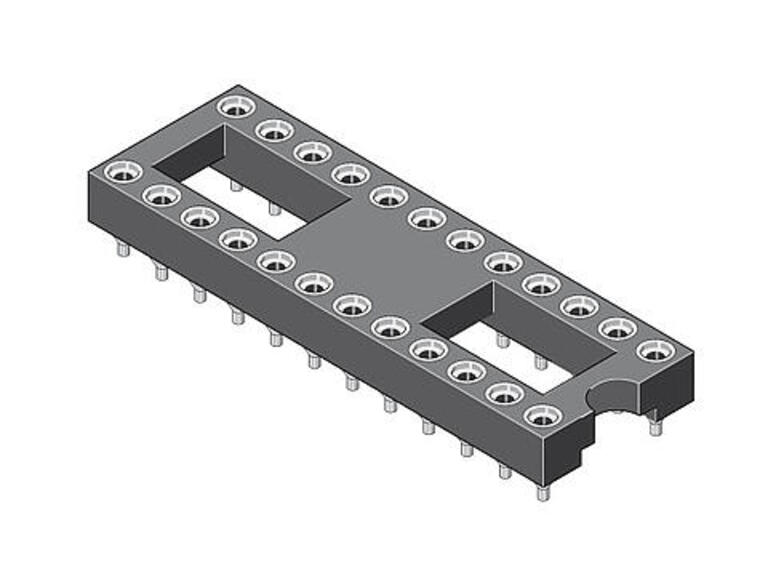

Precision IC Socket for automatic SMD Mounting 2.54 mm Series 017 – Variant 1
Precision IC sockets for automatic SMD mounting 2.54mm
Versions with floating pin or as Gull Wing contact with integrated suction area
Further technical data and versions or pin counts not listed here can be found in datasheets/product catalogs in the download area.
Please feel free to ask us!
Specifications & Downloads
- Variante
- IC Sockel
- Raster
- 2.54 mm
- Kontaktmaterial
- Copper alloy
- Veredelung Kontakt
- Sn (tin plating)
- Variante des Sockels
- Präzisions-SMD-Sockel mit Mittelsteg
- Kontakttyp
- SMD Floating
- Ausrichtung zu PCB
- Vertikal
- Leiterplattenanschluss
- SMD
- Betriebstemperatur
- -55°C bis + 125°C
- Sockellayout
- DIL (Dual-in-line)
- Isolationsmaterial
- Hochtemperaturfestes Thermoplast UL94V-0
- Nennstrom
- 3
- Nennspannung
- 150 VRMS / VDC / Luft- und Kriechstrecken beachten
- Spannungsfestigkeit
- 1'000 VRMS für 1 Minute
- Marke
- MPE-Garry
- Downloads
- MPE-Garry_Serie017.pdf
Filter
| Amount | Item No. | Description | On stock | Polzahl | Abstand D (E) | Abmessung A | Abmessung B | Abmessung C | VE | Unit |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
017-1-008-3-H5STF-LT0 | MP-SMD-E 08.3 STGU |
|
8 | 7.62 mm | 10.1mm | 10.1mm | 10.1mm | 52 | Stk |
|
|
017-1-018-3-H5STF-LT0 | MP-SMD-E 18.3 STGU |
|
18 | 7.62 mm | 22.9mm | 10.1mm | 5.3mm | 22 | Stk |
|
|
017-1-032-6-H5STF-LT0 | MP-SMD-E 32.6 STGU |
|
32 | 15.24mm | 40.6mm | 17.7mm | 10mm | 12 | Stk |
