Product features
Accessories for electromagnetic holding magnets of Kendrion

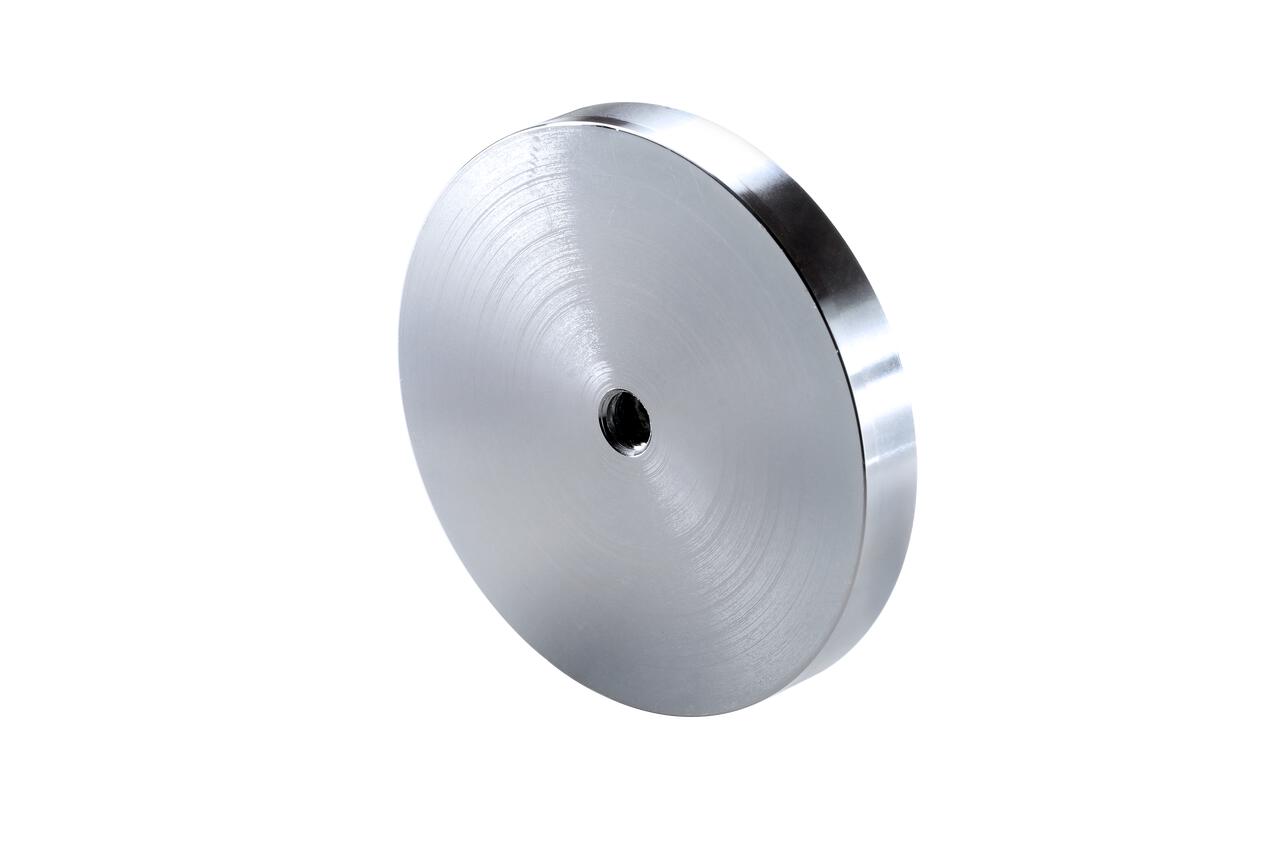

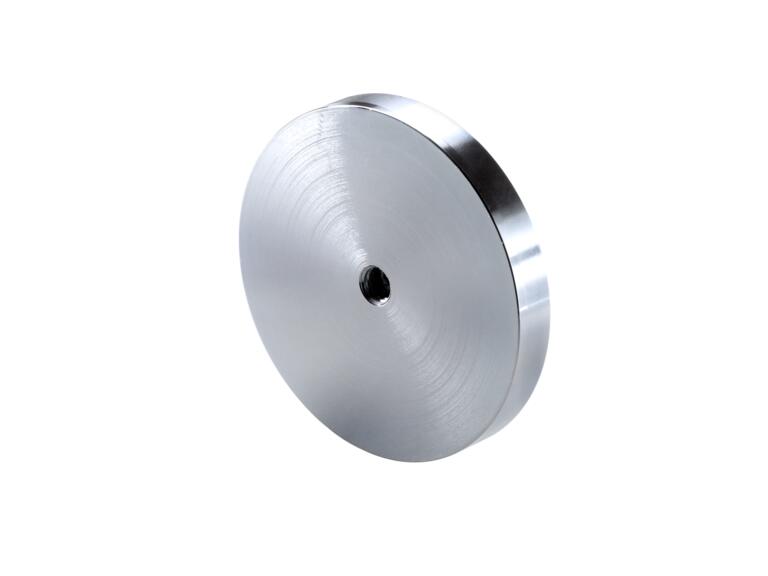

The armature plate should be chosen according to the size of the holding magnet. It is designed for optimal holding forces and has a larger diameter than the corresponding holding magnet. This facilitates fixation of the magnet during assembly.
With lower armature thickness as specified in the table below or the use of materials with poorer surface quality, the holding force is reduced. The complete armature is protected against corrosion by a zinc coating. The attachment is done by a through-thread hole.
Specifications & Downloads
- Construction type
- Round
- Material housing
- Steel
- Marke
- Kendrion (Donaueschingen/Engelswies) GmbH
- Downloads
- IMS_Industrial_Line_de.pdf
Filter
| Amount | Item No. | Description | On stock | Durchmesser | Höhe | Befestigungsgewinde | VE | Unit |
|---|---|---|---|---|---|---|---|---|
|
|
GTX015.000001.200 | GT015B001-200 |
|
17mm | 4mm | M3 | 1 | Stk |
|
|
GTX018.000001.200 | GT018B001-200 |
|
22mm | 4mm | M3 | 1 | Stk |
|
|
GTX025.000001.200 | GT025B001-200 |
|
28mm | 4mm | M4 | 1 | Stk |
|
|
GTX032.000001.200 | GT032B001-200 |
|
37mm | 4mm | M4 | 1 | Stk |
|
|
GTX040.000001.200 | GT040B001-200 |
|
42mm | 7mm | M5 | 1 | Stk |
|
|
GTX050.000001.200 | GT050B001-200 |
|
58mm | 8mm | M5 | 1 | Stk |
|
|
GTX063.000001.200 | GT063B001-200 |
|
65mm | 10mm | M6 | 1 | Stk |
|
|
GTX070.000001.200 | GT070B001-200 |
|
72mm | 11mm | M8 | 1 | Stk |
|
|
GTX080.000001.200 | GT080B001-200 |
|
82mm | 13mm | M10 | 1 | Stk |
|
|
GTX090.000001.200 | GT090B001-200 |
|
92mm | 14mm | M10 | 1 | Stk |
|
|
GTX100.000001.200 | GT100B001-200 |
|
107mm | 15mm | M12 | 1 | Stk |
