Electro Holding Magnets Series 10 310

Electromagnetic holding magnets series 10 310 of Kendrion

Holding magnets of the Industrial Line from Kendrion include all electromagnetic holding systems in round, flat and rod-shaped designs. The magnets consist of a magnetic housing and a DC-excited coil.

The magnets consist of a magnetic housing and a DC-excited coil. The open magnetic circuit when switched on allows holding of ferromagnetic workpieces. When the power supply is switched off, the workpiece to be held falls off. These holding systems operate with very low operating current and are maintenance-free.

Kendrion is the manufacturer with the largest range of industrial electromagnetic holding magnets. Our products do not only differ between round and rectangular, we also have force-optimized versions that offer a significant holding force advantage at the same size. The following series are offered in our standard program:

Series GTB: Standard electromagnetic holding magnets in round shape from 15-250mm diameter

Series GTH: Force-optimized electromagnetic holding magnets in round shape from 15-100mm diameter

Series 10 331: Electromagnetic holding magnets in round, very flat design in diameters 56, 110 and 170mm

Series 10 310: Electromagnetic holding rods up to a length of 600mm and a width of 60mm

The maximum possible holding forces develop at full and direct contact of the pole plate. The holding forces range from 36 – 30,000 N

All products are manufactured and tested according to DIN VDE 0580.

** Construction changes reserved **

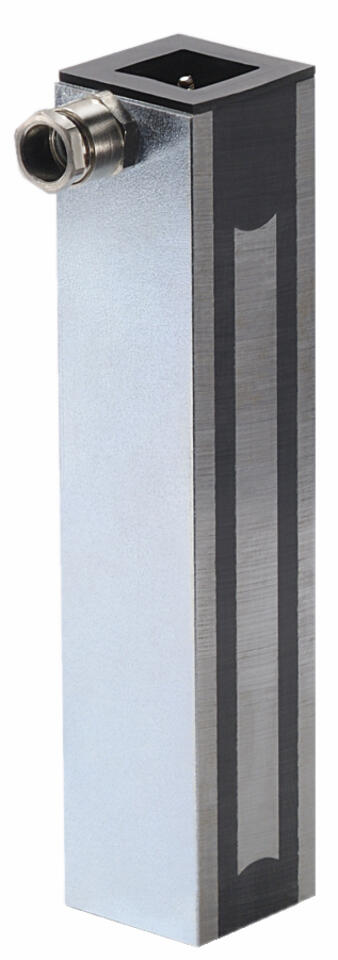

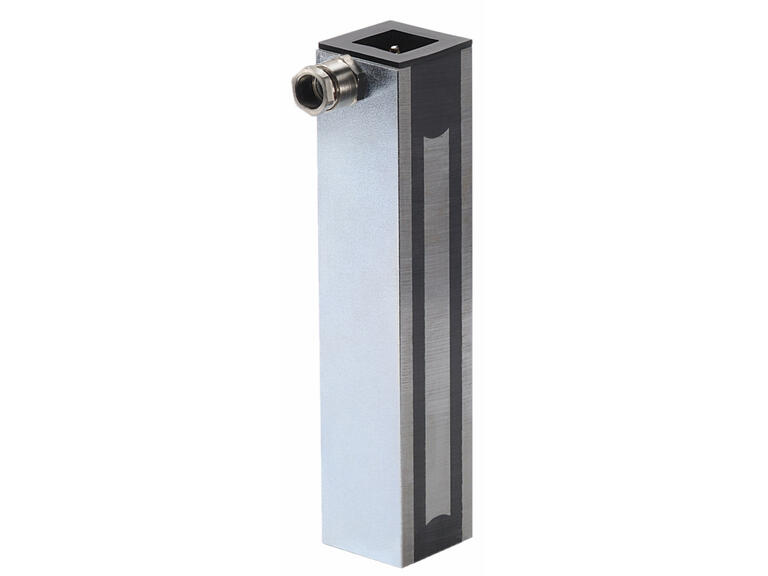

The electromagnetic holding rods are DC holding systems. The open magnetic circuit when switched on allows holding of ferromagnetic workpieces.

The electrical connection is at two threaded studs, which are easily accessible inside the device and accessible via a PG cable gland. This gland can be screwed in either sideways or from below.

The coil is vacuum cast, the magnet housing zinc plated and the holding surface ground. For mounting, threaded holes are provided on the underside of the device.

Application
These magnetic systems are preferably used in general mechanical engineering, handling as well as in safety engineering for mechanical engineering.
In case of lateral force, only the sliding force Fv of approx. 1/4 FH can be assumed.

Advantages
– High holding force at low power consumption
– Compact design
– Various connection possibilities

Technical data
– Standard rated voltage: 24 V DC
– Duty cycle: 100% ED
– Insulation class: E
– PG cable gland: HELUTOP HT-MS / M 12 x 1.5
