Electro Holding Magnets Series 10 331

Electromagnetic holding magnets series 10 331 of Kendrion

Holding magnets of the Industrial Line from Kendrion include all electromagnetic holding systems in round, flat and rod-shaped designs. The magnets consist of a magnetic housing and a DC-excited coil.

The magnets consist of a magnetic housing and a DC-excited coil. The open magnetic circuit when switched on allows holding of ferromagnetic workpieces. When the power supply is switched off, the workpiece to be held falls off. These holding systems operate with very low operating current and are maintenance-free.

Kendrion is the manufacturer with the largest range of industrial electromagnetic holding magnets. Our products do not only differ between round and rectangular, we also have force-optimized versions that offer a significant holding force advantage at the same size. The following series are offered in our standard program:

Series GTB: Standard electromagnetic holding magnets in round shape from 15-250mm diameter

Series GTH: Force-optimized electromagnetic holding magnets in round shape from 15-100mm diameter

Series 10 331: Electromagnetic holding magnets in round, very flat design in diameters 56, 110 and 170mm

Series 10 310: Electromagnetic holding rods up to a length of 600mm and a width of 60mm

The maximum possible holding forces develop at full and direct contact of the pole plate. The holding forces range from 36 – 30,000 N

All products are manufactured and tested according to DIN VDE 0580.

** Construction changes reserved **

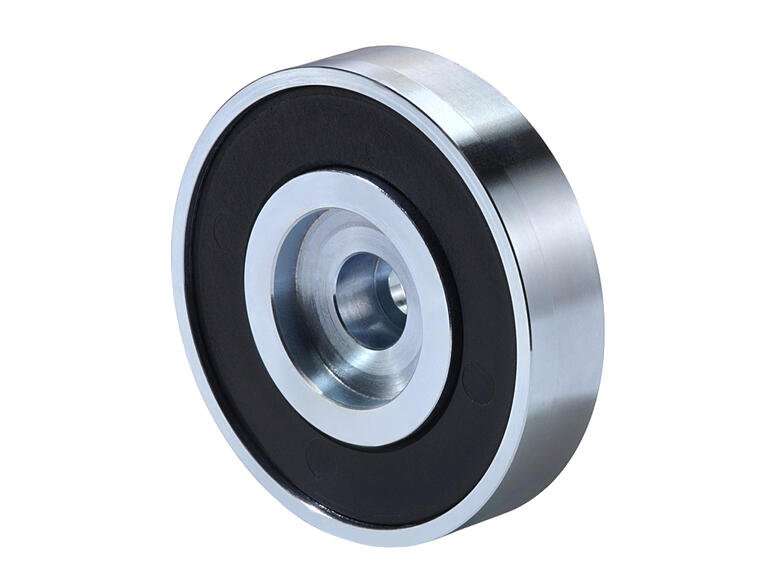

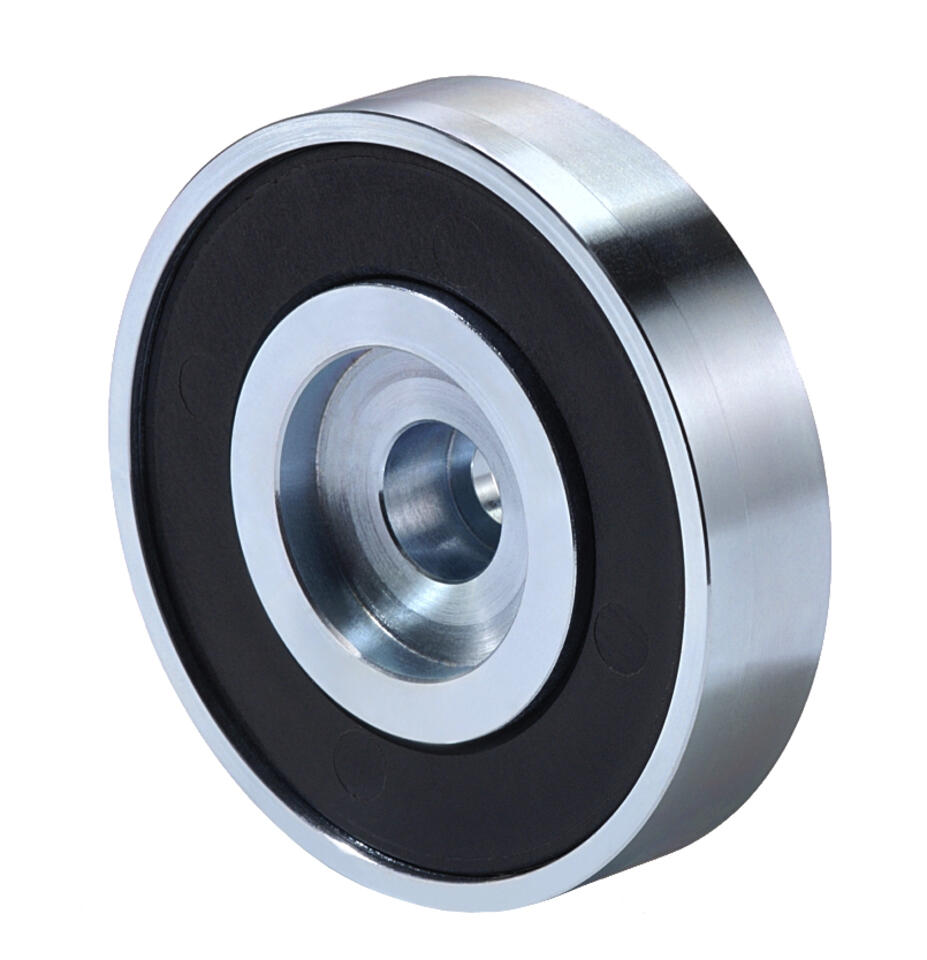

This series is characterized by its extremely flat design and a through-hole for spindle or shaft mounting.

The electrical connection is via free leads at the back of the housing. The coil is vacuum cast and complete magnet housing including holding surface is zinc plated. The attachment is done via one or more central holes accessible from the pole face.

Application
This type is preferably used in handling and robotics where installation space is limited and of low height.

In case of lateral force, only the sliding force Fv of approx. 1/4 FH can be assumed.

Advantages
– High holding force at low power consumption
– Very flat design

Technical data
– Standard rated voltage: 24 V DC
– Duty cycle: 100% ED
– Insulation class: E

Accessories
– matching armature plates
