Electro Holding Magnets Series GTB

Electromagnetic holding magnets series GTB of Kendrion

Holding magnets of the Industrial Line from Kendrion include all electromagnetic holding systems in round, flat and rod-shaped designs. The magnets consist of a magnetic housing and a DC-excited coil.

The magnets consist of a magnetic housing and a DC-excited coil. The open magnetic circuit when switched on allows holding of ferromagnetic workpieces. When the power supply is switched off, the workpiece to be held falls off. These holding systems operate with very low operating current and are maintenance-free.

Kendrion is the manufacturer with the largest range of industrial electromagnetic holding magnets. Our products do not only differ between round and rectangular, we also have force-optimized versions that offer a significant holding force advantage at the same size. The following series are offered in our standard program:

Series GTB: Standard electromagnetic holding magnets in round shape from 15-250mm diameter

Series GTH: Force-optimized electromagnetic holding magnets in round shape from 15-100mm diameter

Series 10 331: Electromagnetic holding magnets in round, very flat design in diameters 56, 110 and 170mm

Series 10 310: Electromagnetic holding rods up to a length of 600mm and a width of 60mm

The maximum possible holding forces develop at full and direct contact of the pole plate. The holding forces range from 36 – 30,000 N

All products are manufactured and tested according to DIN VDE 0580.

** Construction changes reserved **

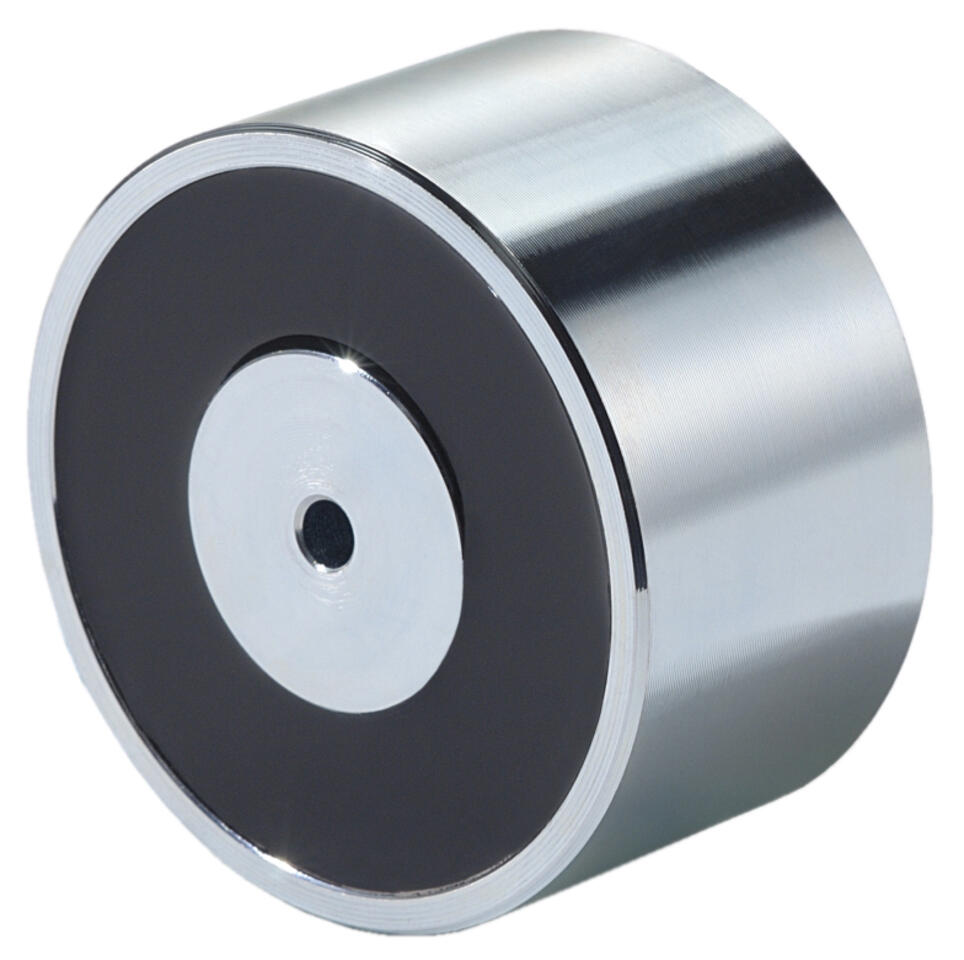

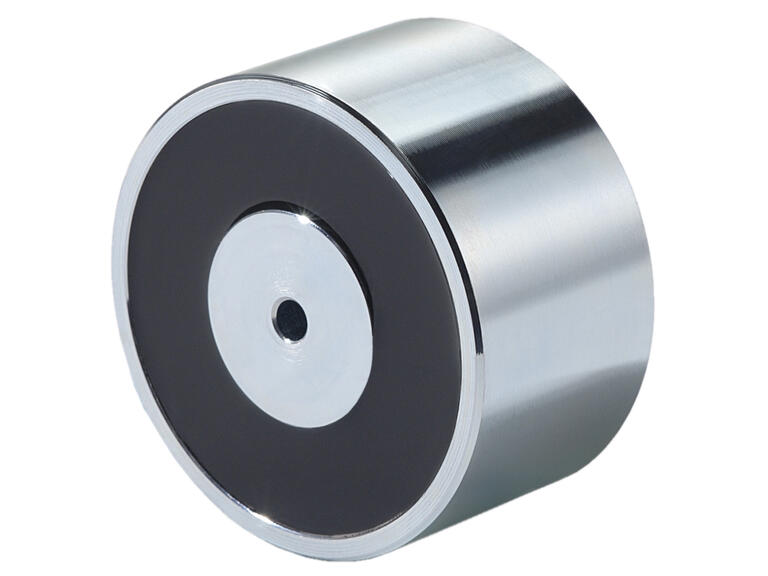

This series GTB describes a complete range of electromagnets in round design. Free leads or, starting from GT100B, cables are provided as connections. For sizes GT025B to GT080B, there is also the possibility of a connection terminal.

The coil is cast with resin (protection class IP65), or, for type GT015B011 uncast (protection class IP54). The entire magnetic housing including holding surface is zinc plated. The attachment is done via a central thread on the back of the housing.

Application
These magnetic systems are preferably used in fixture construction and in the fields of automation, transport, and handling.
In case of lateral force, only the sliding force Fv of approx. 1/4 FH can be assumed.

Advantages
– Maximum holding force with small air gaps
– Compact design
– Various connection possibilities
– Optimized copper and iron ratio

Technical data
– Standard rated voltage: 24 V DC
– Duty cycle: 100% ED
– Insulation class: E

Accessories
– matching armature plates (please order separately)
