Caractéristiques du produit

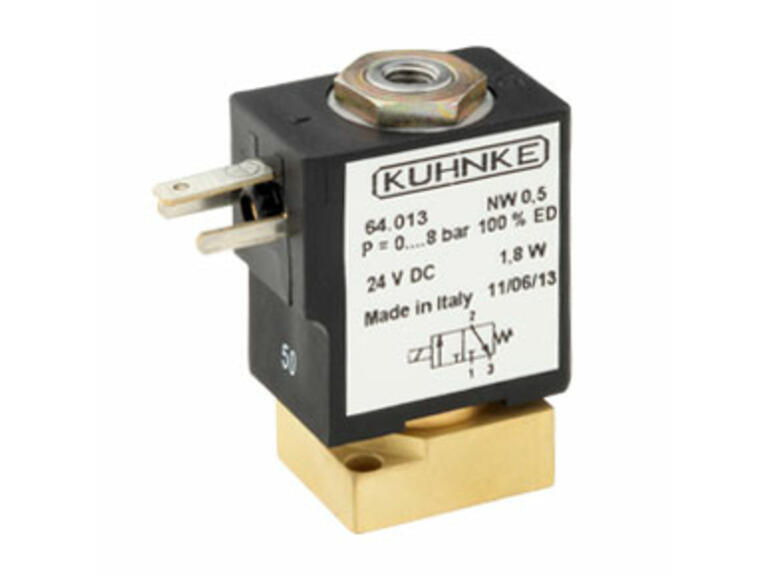

Électrovanne Kuhnke type 64
Les vannes standard sont disponibles en plusieurs versions comme par exemple : trois formes de socles différentes (socle inline M5, bride et socle vissé), pré-câblées ou avec fils, 2/2 voies NC ou 3/2 voies NO/NC, également en version basse puissance, diamètres nominaux 0,5, 1 ou 1,5 mm. Prise pour fiche appareil, témoin de mise sous tension et diode de suppression : voir accessoires vannes.
Matériaux
Socle : CuZn
Joints : NBR
Les détails techniques et dimensions spécifiques sont disponibles dans les fiches techniques de la section téléchargement de ce chapitre
Caractéristiques techniques et téléchargements
- Betätigungsart
- elektrisch betätigt
- cycle de service
- 100
- Medium
- Gefilterte (5 µm), geölte oder ungeölte Luft
- Rückstellung
- ressort
- type de protecion (IP)
- IP65
- Umgebungstemperatur
- -10°C bis +50°C
- Produktlinie - Produkttyp
- Sitzventil
- Wirkungsweise des Ventils
- direktgesteuert
- marque
- Kendrion Kuhnke
- Downloads
- Ventile_Kuhnke_Serie64.pdf
Filtre
| Quantité | Réf. | Désignation | Stock | Druckbereich | Ventilfunktion | kv-Wert | Betriebsspannung | Nennleistung | Nennweite | elektrische Anschlussart | pneumatische Anschlussart | UV | Unité |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
64.001-24VDC | 10191 |
|
0 - 8bar | 3/2-Wege NC | 0.45l/min | 24VDC | 4.6 W | 1.00 mm | Gerätesteckdose | Standard Sockel | 1 | pcs |
|
|
64.016-230VAC | 10191 |
|
0 - 8bar | 3/2-Wege NO | 0.45l/min | 230VAC | 5.5 VA | 1.00 mm | Gerätesteckdose | Standard Sockel | 1 | pcs |
|
|
64.002-24VAC | 10192 |
|
0 - 8bar | 3/2-Wege NC | 0.45l/min | 24VAC | 5.5 VA | 1.00 mm | Gerätesteckdose | Standard Sockel | 1 | pcs |
|
|
64.001-12VDC | 10362 |
|
0 - 8bar | 3/2-Wege NC | 0.45l/min | 12VDC | 4.6 W | 1.00 mm | Gerätesteckdose | Standard Sockel | 1 | pcs |
|
|
64.002-110VAC | 10386 |
|
0 - 8bar | 3/2-Wege NC | 0.45l/min | 110VAC | 5.5 VA | 1.00 mm | Gerätesteckdose | Standard Sockel | 1 | pcs |
|
|
64.002-230VAC | 10388 |
|
0 - 8bar | 3/2-Wege NC | 0.45l/min | 230VAC | 5.5 VA | 1.00 mm | Gerätesteckdose | Standard Sockel | 1 | pcs |
|
|
64.073-24VDC | 10599 |
|
0 - 5bar | 2/2-Wege NC | 0.7l/min | 24VDC | 4.6 W | 1.50 mm | Gerätesteckdose | Standard Sockel | 1 | pcs |
|
|
64.056-24VDC | 12434 |
|
0 - 5bar | 3/2-Wege NC | 0.7l/min | 24VDC | 4.6 W | 1.50 mm | Gerätesteckdose | Flansch Sockel | 1 | pcs |
|
|
64.015-24VDC | 13110 |
|
0 - 8bar | 3/2-Wege NC | 0.45l/min | 24VDC | 4.5 W | 1.00 mm | Gerätesteckdose | Gewindeanschluss G1/8 | 1 | pcs |
|
|
64.047-24VDC | 131284 |
|
0 - 8bar | 2/2-Wege NC | 0.45l/min | 24VDC | 4.6 W | 1.00 mm | Litze | Standard Sockel | 1 | pcs |
|
|
64.054-12VDC | 14527 |
|
0 - 5bar | 3/2-Wege NC | 0.7l/min | 12VDC | 4.6 W | 1.50 mm | Gerätesteckdose | Standard Sockel | 1 | pcs |
|
|
64.011-24VDC | 16239 |
|
0 - 8bar | 3/2-Wege NC | 0.11l/min | 24VDC | 1.8 W | 0.50 mm | Gerätesteckdose | Standard Sockel | 1 | pcs |
|
|
64.064-24VDC | 163777 |
|
0 - 4bar | 3/2-Wege NO | 0.7l/min | 24VDC | 4.5 W | 1.50 mm | Litze | Standard Sockel | 1 | pcs |
|
|
64.017-24VDC | 16616 |
|
0 - 8bar | 3/2-Wege NO | 0.45l/min | 24VDC | 4.6 W | 1.00 mm | Gerätesteckdose | Standard Sockel | 1 | pcs |
|
|
64.071-24VDC | 170069 |
|
0 - 5bar | 3/2-Wege NC | 0.7l/min | 24VDC | 4.6 W | 1.50 mm | Litze | Flansch Sockel | 1 | pcs |
|
|
64.013-24VDC | 18906 |
|
0 - 8bar | 3/2-Wege NC | 0.12l/min | 24VDC | 1.8 W | 0.50 mm | Gerätesteckdose | Flansch Sockel | 1 | pcs |
|
|
64.025-24VDC | 22152 |
|
0 - 8bar | 2/2-Wege NC | 0.45l/min | 24VDC | 4.6 W | 1.00 mm | Gerätesteckdose | Standard Sockel | 1 | pcs |
|
|
64.027-24VDC | 22154 |
|
0 - 8bar | 2/2-Wege NC | 0.45l/min | 24VDC | 4.6 W | 1.00 mm | Gerätesteckdose | Flansch Sockel | 1 | pcs |
|
|
64.024-24VAC | 31984 |
|
0 - 8bar | 2/2-Wege NC | 0.45l/min | 24VAC | 5.5 VA | 1.00 mm | Gerätesteckdose | Standard Sockel | 1 | pcs |
|
|
64.055-230VAC | 33717 |
|
0 - 5bar | 3/2-Wege NC | 0.7l/min | 230VAC | 5.5 VA | 1.50 mm | Gerätesteckdose | Flansch Sockel | 1 | pcs |
|
|
64.025-12VDC | 33786 |
|
0 - 8bar | 2/2-Wege NC | 0.45l/min | 12VDC | 4.5 W | 1.00 mm | Gerätesteckdose | Standard Sockel | 1 | pcs |
|
|
64.054-24VDC | 51143 |
|
0 - 5bar | 3/2-Wege NC | 0.7l/min | 24VDC | 4.6 W | 1.50 mm | Gerätesteckdose | Standard Sockel | 1 | pcs |
|
|
64.061-24VDC | 53406 |
|
0 - 8bar | 3/2-Wege NC | 0.12l/min | 24VDC | 1.8 W | 0.50 mm | Litze | Flansch Sockel | 1 | pcs |
|
|
64.031-24VDC | 53579 |
|
0 - 8bar | 3/2-Wege NC | 0.45l/min | 24VDC | 4.6 W | 1.00 mm | Litze | Flansch Sockel | 1 | pcs |
|
|
64.062-24VDC | 53814 |
|
0 - 8bar | 3/2-Wege NO | 0.45l/min | 24VDC | 4.6 W | 1.00 mm | Gerätesteckdose | Flansch Sockel | 1 | pcs |
|
|
64.045-24VDC | 55367 |
|
0 - 8bar | 3/2-Wege NO | 0.45l/min | 24VDC | 4.6 W | 1.00 mm | Litze | Standard Sockel | 1 | pcs |
|
|
64.060-24VDC | 55368 |
|
0 - 8bar | 3/2-Wege NC | 0.12l/min | 24VDC | 1.8 W | 0.50 mm | Litze | Standard Sockel | 1 | pcs |
|
|
64.070-24VDC | 56664 |
|
0 - 5bar | 3/2-Wege NC | 0.7l/min | 24VDC | 4.6 W | 1.50 mm | Litze | Standard Sockel | 1 | pcs |
|
|
64.074-24VDC | 56752 |
|
0 - 5bar | 2/2-Wege NC | 0.7l/min | 24VDC | 4.6 W | 1.50 mm | Litze | Standard Sockel | 1 | pcs |
|
|
64.074-12VDC | 60446 |
|
0 - 5bar | 2/2-Wege NC | 0.7l/min | 12VDC | 4.6 W | 1.50 mm | Litze | Standard Sockel | 1 | pcs |
|
|
64.076-24VDC | 69291 |
|
0 - 5bar | 2/2-Wege NC | 0.7l/min | 24VDC | 4.6 W | 1.50 mm | Gerätesteckdose | Flansch Sockel | 1 | pcs |
|
|
64.008-24VAC | 71387 |
|
0 - 8bar | 3/2-Wege NC | 0.45l/min | 24VAC | 5.5 VA | 1.00 mm | Gerätesteckdose | Flansch Sockel | 1 | pcs |
|
|
64.009-24VDC | 71390 |
|
0 - 8bar | 3/2-Wege NC | 0.45l/min | 24VDC | 4.6 W | 1.00 mm | Gerätesteckdose | Flansch Sockel | 1 | pcs |
|
|
64.071-12VDC | 73475 |
|
0 - 5bar | 3/2-Wege NC | 0.7l/min | 12VDC | 4.6 W | 1.50 mm | Litze | Flansch Sockel | 1 | pcs |
|
|
64.077-24VDC | 81411 |
|
0 - 5bar | 2/2-Wege NC | 0.7l/min | 24VDC | 4.6 W | 1.50 mm | Litze | Flansch Sockel | 1 | pcs |
|
|
64.070-12VDC | 82189 |
|
0 - 5bar | 3/2-Wege NC | 0.7l/min | 12VDC | 4.6 W | 1.50 mm | Litze | Standard Sockel | 1 | pcs |
|
|
64.060-12VDC | 83820 |
|
0 - 8bar | 3/2-Wege NC | 0.12l/min | 12VDC | 1.8 W | 0.50 mm | Litze | Standard Sockel | 1 | pcs |
| Réf. art. | Description |
|---|---|
| 64.230.01 | Bouchon de câble Kuhnke pour vannes série 64 - sans câble |
| 64.330 | Joint lumineux pour vannes série 64 avec fiche de dispositif 64.230.01 pour 12-24V |
| 64.157.02 | Bouchon de câble Kuhnke pour vannes série 64 - avec câble longueur 3m mais sans LED |
| 64.157.01 | Bouchon de câble Kuhnke pour vannes série 64 - avec câble, longueur 3m et avec LED 3mm jaune |
