Caractéristiques du produit

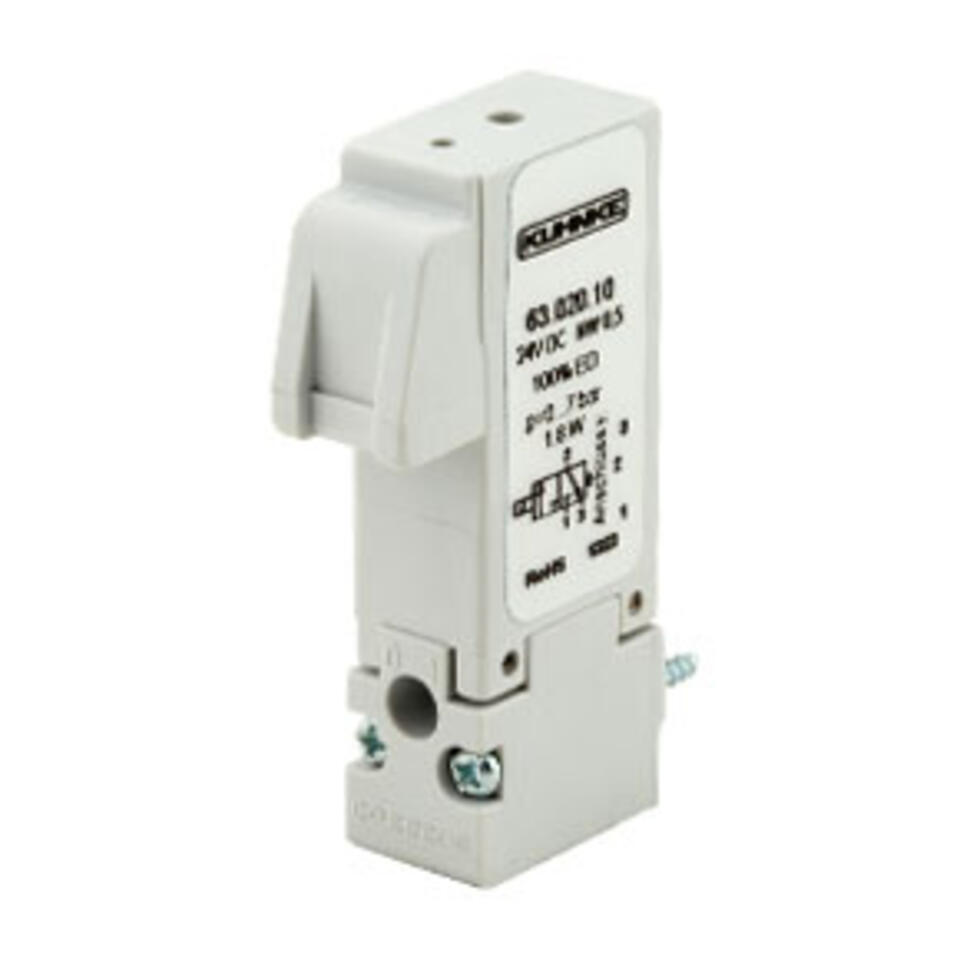

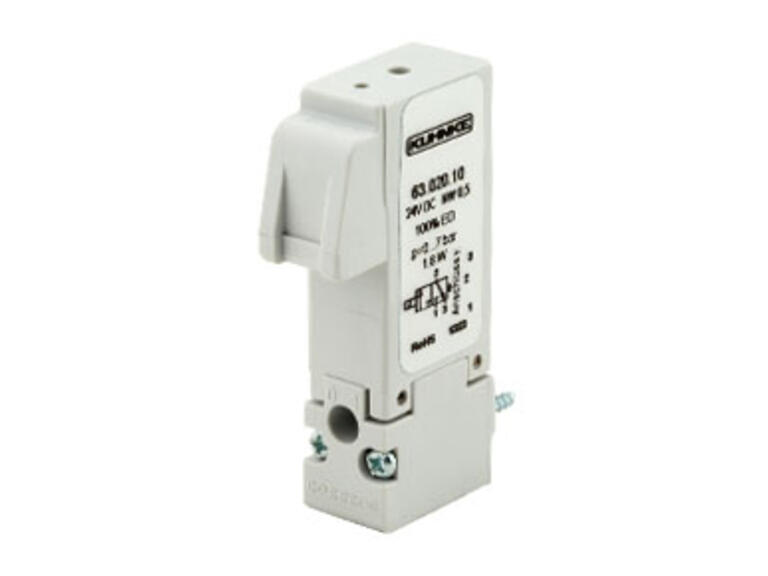

Électrovanne Kuhnke type 63.0
Les électrovannes pour liquides et gaz existent en différentes versions standard et largeurs de construction de 10 à 22 mm. Les électrovannes directes Kuhnke sont de construction compacte et atteignent des débits relativement élevés avec une faible consommation de puissance. Elles sont utilisées, entre autres, dans les appareils de ventilation et d’anesthésie pour la commande d’oxygène, ou dans les unités dentaires pour la commande d’air, de vide et d’eau. Toutes les électrovannes standard peuvent être adaptées presque à volonté.
Série 63.0 – largeur de construction 10 mm, 3 possibilités de connexion électrique. Fonctionnement manuel d’urgence en option : verrouillage.
Comprend
2 vis de fixation (vis autoforantes M1,6 × 18,8 pour plastique). Vis métriques sur demande. Vis autoforantes pour métal fournies avec les plaques de raccordement en aluminium (voir accessoires vannes).
Matériaux
Socle : Pocan
Joints : NBR
Caractéristiques techniques et téléchargements
- Betätigungsart
- elektrisch betätigt
- cycle de service
- 100
- Medium
- Gefilterte (5 µm), geölte oder ungeölte Luft
- pneumatische Anschlussart
- Flansch Sockel
- Rückstellung
- ressort
- type de protecion (IP)
- IP65
- Umgebungstemperatur
- -10°C bis +50°C
- Produktlinie - Produkttyp
- Sitzventil
- Wirkungsweise des Ventils
- direktgesteuert
- marque
- Kendrion Kuhnke
- Downloads
- Magnetventile _Mikro_BG10mm_Stecker.pdf Magnetventile _Mikro_BG10mm_Steckerstift.pdf
Filtre
| Quantité | Réf. | Désignation | Stock | Druckbereich | Ventilfunktion | kv-Wert | Betriebsspannung | Nennweite | elektrische Anschlussart | UV | Unité |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
63.052.30-24VDC | --- |
|
0 - 5bar | 2/2-Wege NO | 0.11l/min | 24VDC | 0.90 mm | Litze | 1 | pcs |
|
|
63.050.21-24VDC | --- |
|
0 - 7bar | 3/2-Wege NC | 0.23l/min | 24VDC | 0.70 mm | Litze | 1 | pcs |
|
|
63.022.20-24VDC | --- |
|
0 - 7bar | 2/2-Wege NC | 0.11l/min | 24VDC | 0.70 mm | fiche | 1 | pcs |
|
|
63.022.10-24VDC | --- |
|
0 - 10bar | 2/2-Wege NC | 0.11l/min | 24VDC | 0.50 mm | fiche | 1 | pcs |
|
|
63.053.20-24VDC | --- |
|
0 - 7bar | 2/2-Wege NC | 0.11l/min | 24VDC | 0.70 mm | Litze | 1 | pcs |
|
|
63.044.20-24VDC | --- |
|
0 - 7bar | 3/2-Wege NC | 0.23l/min | 24VDC | 0.70 mm | Steckerstifte / Pins | 1 | pcs |
|
|
63.050.20-24VDC | --- |
|
0 - 7bar | 3/2-Wege NC | 0.11l/min | 24VDC | 0.70 mm | Litze | 1 | pcs |
|
|
63.032.31-24VDC | --- |
|
0 - 5bar | 2/2-Wege NC | 0.33l/min | 24VDC | 0.90 mm | Steckerstifte / Pins | 1 | pcs |
|
|
63.050.20-12VDC | --- |
|
0 - 7bar | 3/2-Wege NC | 0.11l/min | 12VDC | 0.70 mm | Litze | 1 | pcs |
|
|
63.040.10-12VDC | --- |
|
0 - 10bar | 3/2-Wege NC | 0.11l/min | 12VDC | 0.50 mm | Steckerstifte / Pins | 1 | pcs |
|
|
63.051.20-24VDC | --- |
|
0 - 7bar | 3/2-Wege NO | 0.23l/min | 24VDC | 0.70 mm | Litze | 1 | pcs |
|
|
63.033.20-24VDC | --- |
|
0 - 7bar | 2/2-Wege NO | 0.11l/min | 24VDC | 0.70 mm | Steckerstifte / Pins | 1 | pcs |
|
|
63.050.10-24VDC | --- |
|
0 - 10bar | 3/2-Wege NC | 0.11l/min | 24VDC | 0.50 mm | Litze | 1 | pcs |
|
|
63.050.30-24VDC | --- |
|
0 - 5bar | 3/2-Wege NC | 0.33l/min | 24VDC | 0.90 mm | Litze | 1 | pcs |
|
|
63.030.10-24VDC | --- |
|
0 - 10bar | 3/2-Wege NC | 0.11l/min | 24VDC | 0.50 mm | Steckerstifte / Pins | 1 | pcs |
|
|
63.032.20-24VDC | --- |
|
0 - 7bar | 2/2-Wege NC | 0.11l/min | 24VDC | 0.70 mm | Steckerstifte / Pins | 1 | pcs |
|
|
63.030.30-24VDC | --- |
|
0 - 5bar | 3/2-Wege NC | 0.33l/min | 24VDC | 0.90 mm | Steckerstifte / Pins | 1 | pcs |
|
|
63.050.10-12VDC | --- |
|
0 - 10bar | 3/2-Wege NC | 0.11l/min | 12VDC | 0.50 mm | Litze | 1 | pcs |
|
|
63.052.10-24VDC | --- |
|
0 - 10bar | 2/2-Wege NO | 0.11l/min | 24VDC | 0.50 mm | Litze | 1 | pcs |
|
|
63.052.30-12VDC | --- |
|
0 - 5bar | 2/2-Wege NO | 0.11l/min | 12VDC | 0.90 mm | Litze | 1 | pcs |
|
|
63.021.60-12VDC | --- |
|
0 - 1.5bar | 3/2-Wege NO | 0.54l/min | 12VDC | 1.20 mm | fiche | 1 | pcs |
|
|
63.050.30-12VDC | --- |
|
0 - 5bar | 3/2-Wege NC | 0.33l/min | 12VDC | 0.90 mm | Litze | 1 | pcs |
|
|
63.023.20-24VDC | --- |
|
0 - 7bar | 2/2-Wege NO | 0.11l/min | 24VDC | 0.70 mm | fiche | 1 | pcs |
|
|
63.032.10-24VDC | --- |
|
0 - 10bar | 2/2-Wege NC | 0.11l/min | 24VDC | 0.90 mm | Steckerstifte / Pins | 1 | pcs |
|
|
63.044.30-24VDC | --- |
|
0 - 5bar | 3/2-Wege NC | 0.33l/min | 24VDC | 0.90 mm | Steckerstifte / Pins | 1 | pcs |
|
|
63.052.20-24VDC | --- |
|
0 - 7bar | 2/2-Wege NO | 0.11l/min | 24VDC | 0.70 mm | Litze | 1 | pcs |
|
|
63.030.20-24VDC | --- |
|
0 - 7bar | 3/2-Wege NC | 0.23l/min | 24VDC | 0.70 mm | Steckerstifte / Pins | 1 | pcs |
|
|
63.032.30-24VDC | 155459 |
|
0 - 5bar | 2/2-Wege NC | 0.33l/min | 24VDC | 0.90 mm | Steckerstifte / Pins | 1 | pcs |
|
|
63.022.30-24VDC | 172916 |
|
0 - 5bar | 2/2-Wege NC | 0.11l/min | 24VDC | 0.90 mm | fiche | 1 | pcs |
|
|
63.020.10-24VDC | 99766 |
|
0 - 10bar | 3/2-Wege NC | 0.11l/min | 24VDC | 0.50 mm | fiche | 1 | pcs |
|
|
63.020.20-24VDC | 99782 |
|
0 - 7bar | 3/2-Wege NC | 0.23l/min | 24VDC | 0.70 mm | fiche | 1 | pcs |
|
|
63.020.30-24VDC | 99783 |
|
0 - 5bar | 3/2-Wege NC | 0.33l/min | 24VDC | 0.90 mm | fiche | 1 | pcs |
|
|
63.021.20-24VDC | 99784 |
|
0 - 7bar | 3/2-Wege NO | 0.23l/min | 24VDC | 0.70 mm | fiche | 1 | pcs |
