Product features
Kuhnke solenoid valve type 65
Standard valves are available in various versions such as three different base forms (standard, flange, and screw-in base), with connection for device socket or with leads, 3/2-way NO or NC (2/2-way on request), also in low power versions, nominal diameters 0.5 and 1 as well as 1.6 and 2 mm. Device socket, coil status indicator and extinguishing diode see valve accessories.
Materials
Base: CuZn
Seals: NBR
Information about the exact version with technical dimensions can be found in the datasheets in the download section of this chapter
Specifications & Downloads
- Betätigungsart
- elektrisch betätigt
- Einschaltdauer ED
- 100
- Medium
- Gefilterte (5 µm), geölte oder ungeölte Luft
- Rückstellung
- Spring
- Schutzart (IP)
- IP65
- Umgebungstemperatur
- -10°C bis +60°C
- Produktlinie - Produkttyp
- Sitzventil
- Wirkungsweise des Ventils
- direktgesteuert
- Marke
- Kendrion Kuhnke
- Downloads
- Ventile_Kuhnke_Serie65.pdf
Filter
| Amount | Item No. | Description | On stock | EAN | Druckbereich | Ventilfunktion | kv-Wert | Betriebsspannung | Nennleistung | Nennweite | elektrische Anschlussart | pneumatische Anschlussart | VE | Unit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
65.116-24VAC | --- |
|
0 - 8bar | 3/2-Wege NC | 0.45l/min | 24VAC | 5.0 VA | 1.00 mm | Gerätesteckdose | Anschlussplattenmontage | 1 | Stk | |
|
|
65.112-24VAC | 12160 |
|
0 - 8bar | 3/2-Wege NC | 0.45l/min | 24VAC | 5.0 VA | 1.00 mm | Gerätesteckdose | Standard Sockel | 1 | Stk | |
|
|
65.114-24VAC | 12162 |
|
4030727121623 | 0 - 6bar | 3/2-Wege NO | 0.45l/min | 24VAC | 5.0 VA | 1.00 mm | Gerätesteckdose | Standard Sockel | 1 | Stk |
|
|
65.233-24VDC | 12167 |
|
0 - 4bar | 3/2-Wege NO | 1.15l/min | 24VDC | 4.5 W | 2.00 mm | Gerätesteckdose | Standard Sockel | 1 | Stk | |
|
|
65.117-24VDC | 12175 |
|
0 - 8bar | 3/2-Wege NC | 0.45l/min | 24VDC | 4.5 W | 1.00 mm | Gerätesteckdose | Anschlussplattenmontage | 1 | Stk | |
|
|
65.118-24VAC | 12176 |
|
0 - 8bar | 3/2-Wege NC | 0.45l/min | 24VAC | 5.0 VA | 1.00 mm | Gerätesteckdose | Anschlussplattenmontage | 1 | Stk | |
|
|
65.112-230VAC | 12351 |
|
4030727123511 | 0 - 8bar | 3/2-Wege NC | 0.45l/min | 230VAC | 5.0 VA | 1.00 mm | Gerätesteckdose | Standard Sockel | 1 | Stk |
|
|
65.128-230VAC | 12925 |
|
0 - 8bar | 3/2-Wege NC | 0.45l/min | 230VAC | 5.0 VA | 1.00 mm | Gerätesteckdose | Flansch Sockel | 1 | Stk | |
|
|
65.239-12VDC | 131293 |
|
4030727405266 | 0 - 3bar | 3/2-Wege NC | 1.15l/min | 12VDC | 4.5 W | 2.00 mm | Litze | Standard Sockel | 1 | Stk |
|
|
65.111-12VDC | 13743 |
|
4030727137433 | 0 - 8bar | 3/2-Wege NC | 0.45l/min | 12VDC | 4.5 W | 1.00 mm | Gerätesteckdose | Standard Sockel | 1 | Stk |
|
|
65.119-12VDC | 14695 |
|
4030727146954 | 0 - 8bar | 3/2-Wege NC | 0.45l/min | 12VDC | 4.5 W | 1.00 mm | Gerätesteckdose | Gewindeanschluss G1/8 | 1 | Stk |
|
|

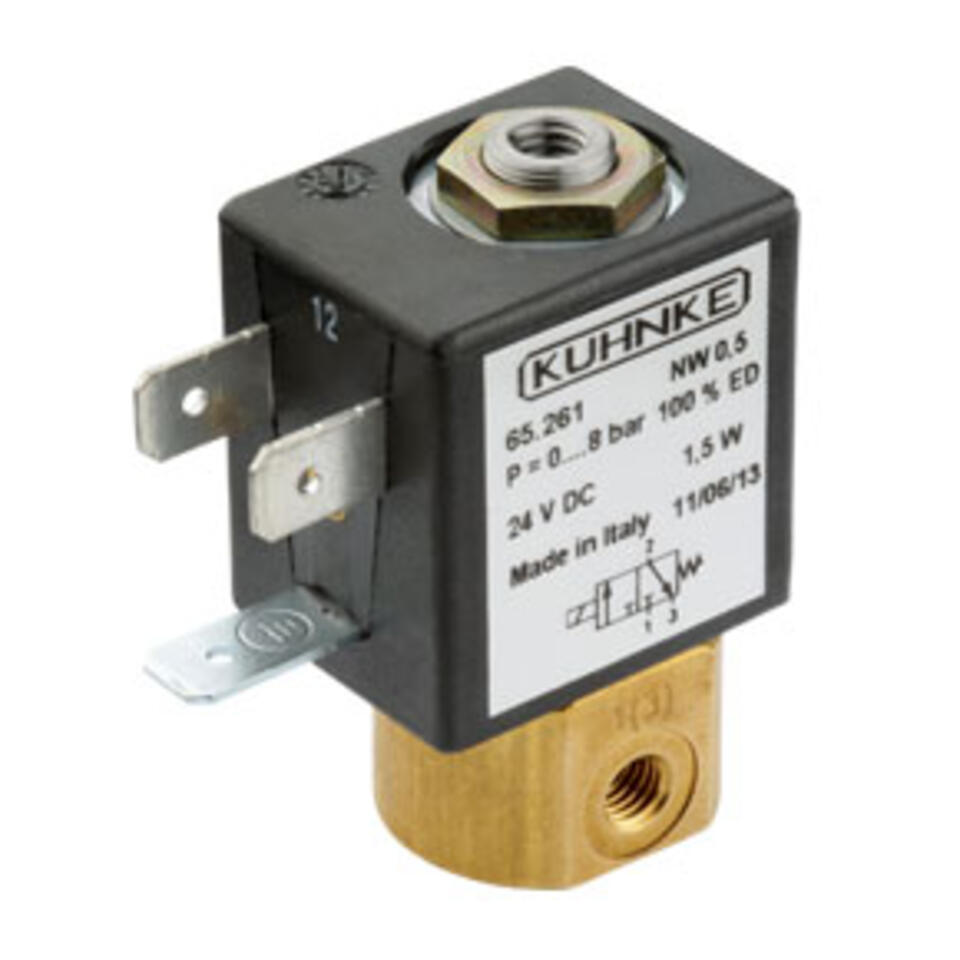

65.261-24VDC | 195421 |
|
4030727559105 | 0 - 8bar | 3/2-Wege NC | 0.14l/min | 24VDC | 1.5 W | 0.50 mm | Gerätesteckdose | Standard Sockel | 1 | Stk |
|
|
65.111-24VDC | 201868 |
|
0 - 8bar | 3/2-Wege NC | 0.45l/min | 24VDC | 4.5 W | 1.00 mm | Gerätesteckdose | Standard Sockel | 1 | Stk | |
|
|
65.113-24VDC | 201884 |
|
4030727121616 | 0 - 6bar | 3/2-Wege NO | 0.45l/min | 24VDC | 4.5 W | 1.00 mm | Gerätesteckdose | Standard Sockel | 1 | Stk |
|
|

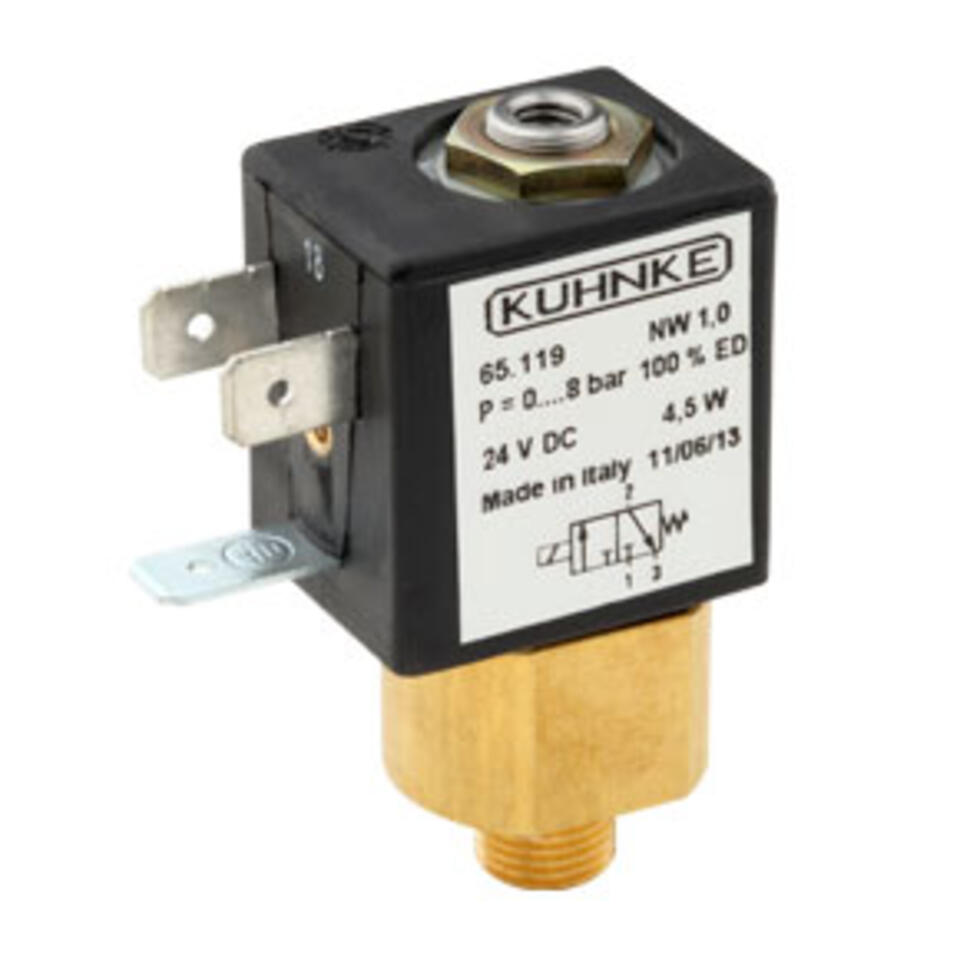

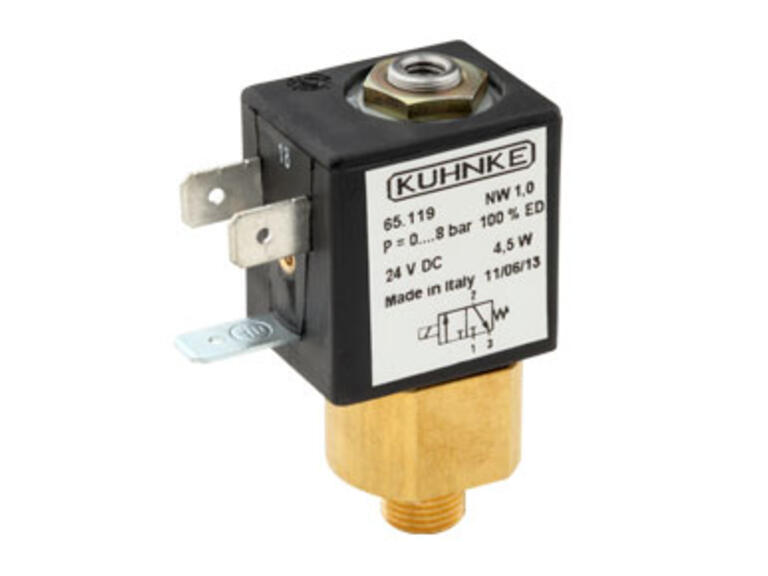

65.119-24VDC | 201885 |
|
0 - 8bar | 3/2-Wege NC | 0.45l/min | 24VDC | 4.5 W | 1.00 mm | Gerätesteckdose | Gewindeanschluss G1/8 | 1 | Stk | |
|
|
65.127-24VDC | 201888 |
|
4030727069192 | 0 - 8bar | 3/2-Wege NC | 0.45l/min | 24VDC | 4.5 W | 1.00 mm | Gerätesteckdose | Flansch Sockel | 1 | Stk |
|
|
65.171-24VDC | 201889 |
|
4030727121630 | 0 - 5bar | 3/2-Wege NC | 0.9l/min | 24VDC | 4.5 W | 1.60 mm | Gerätesteckdose | Standard Sockel | 1 | Stk |
|
|
65.172-24VAC | 201892 |
|
4030727117350 | 0 - 5bar | 3/2-Wege NC | 0.9l/min | 24VAC | 5.0 VA | 1.60 mm | Gerätesteckdose | Standard Sockel | 1 | Stk |
|
|
65.175-24VDC | 201893 |
|
4030727121715 | 0 - 5bar | 3/2-Wege NC | 0.9l/min | 24VDC | 4.5 W | 1.60 mm | Gerätesteckdose | Gewindeanschluss G1/8 | 1 | Stk |
|
|
65.176-230VAC | 201899 |
|
4030727123573 | 0 - 5bar | 3/2-Wege NC | 0.9l/min | 230VAC | 5.0 VA | 1.60 mm | Gerätesteckdose | Gewindeanschluss G1/8 | 1 | Stk |
|
|
65.231-24VDC | 201901 |
|
4030727121654 | 0 - 3bar | 3/2-Wege NC | 1.15l/min | 24VDC | 4.5 W | 2.00 mm | Gerätesteckdose | Standard Sockel | 1 | Stk |
|
|
65.232-230VAC | 201902 |
|
4030727123580 | 0 - 3bar | 3/2-Wege NC | 1.15l/min | 230VAC | 5.0 VA | 2.00 mm | Gerätesteckdose | Standard Sockel | 1 | Stk |
|
|
65.235-24VDC | 201905 |
|
0 - 3bar | 3/2-Wege NC | 1.15l/min | 24VDC | 4.5 W | 2.00 mm | Gerätesteckdose | Flansch Sockel | 1 | Stk | |
|
|

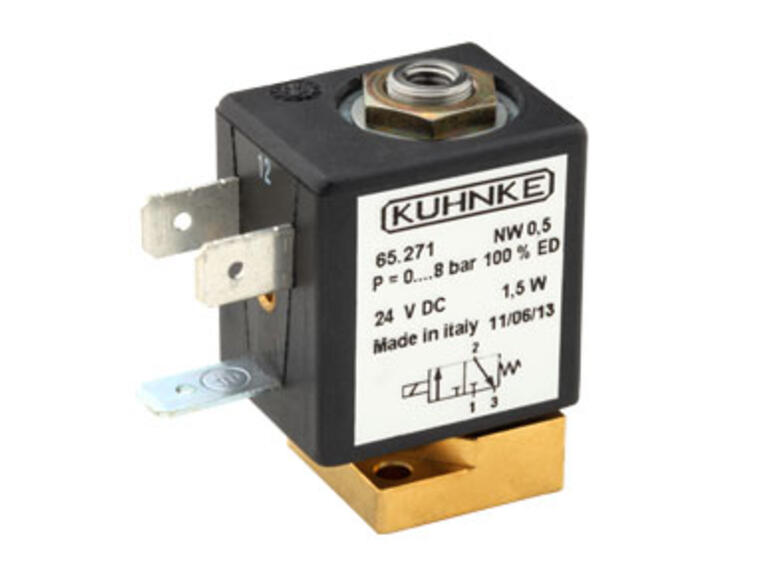

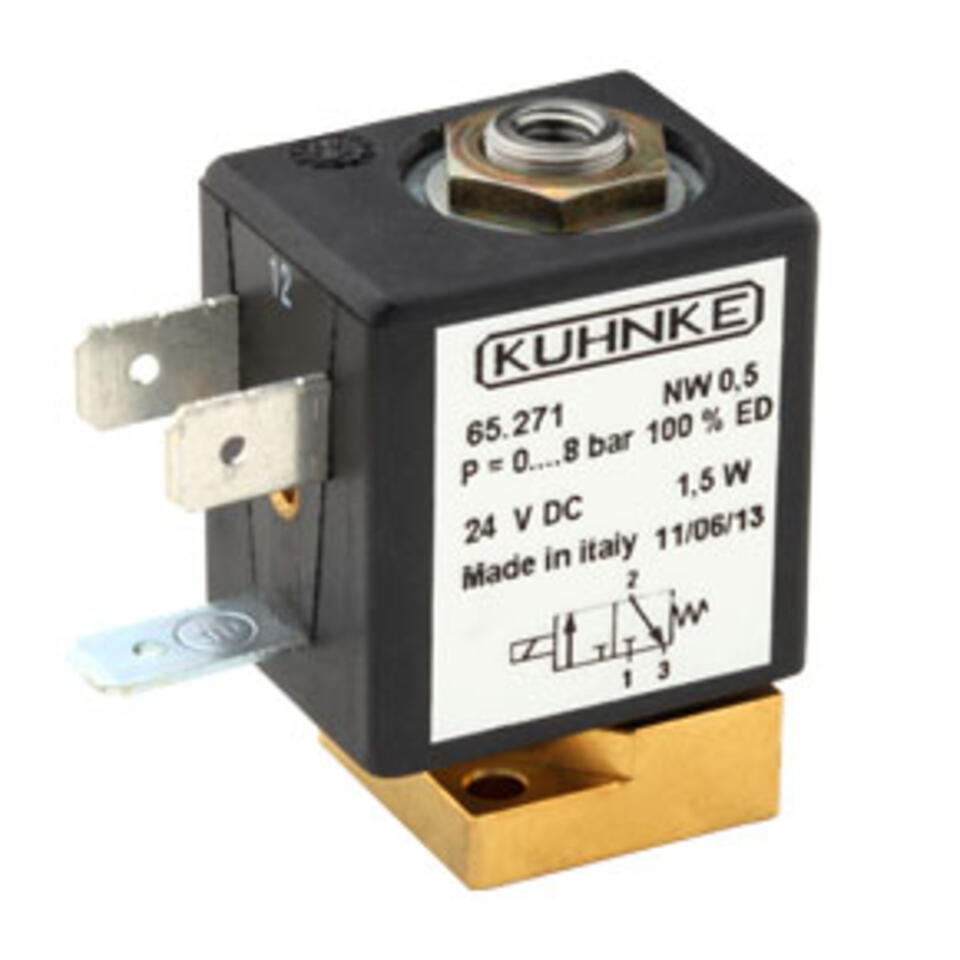

65.271-24VDC | 201908 |
|
0 - 8bar | 3/2-Wege NC | 0.16l/min | 24VDC | 1.5 W | 0.50 mm | Gerätesteckdose | Flansch Sockel | 1 | Stk | |
|
|
65.127-12VDC | 54868 |
|
4030727548680 | 0 - 8bar | 3/2-Wege NC | 0.45l/min | 12VDC | 4.5 W | 1.00 mm | Gerätesteckdose | Flansch Sockel | 1 | Stk |
|
|
65.261-12VDC | 56016 |
|
4030727560163 | 0 - 8bar | 3/2-Wege NC | 0.14l/min | 12VDC | 1.5 W | 0.50 mm | Gerätesteckdose | Standard Sockel | 1 | Stk |
