Product features

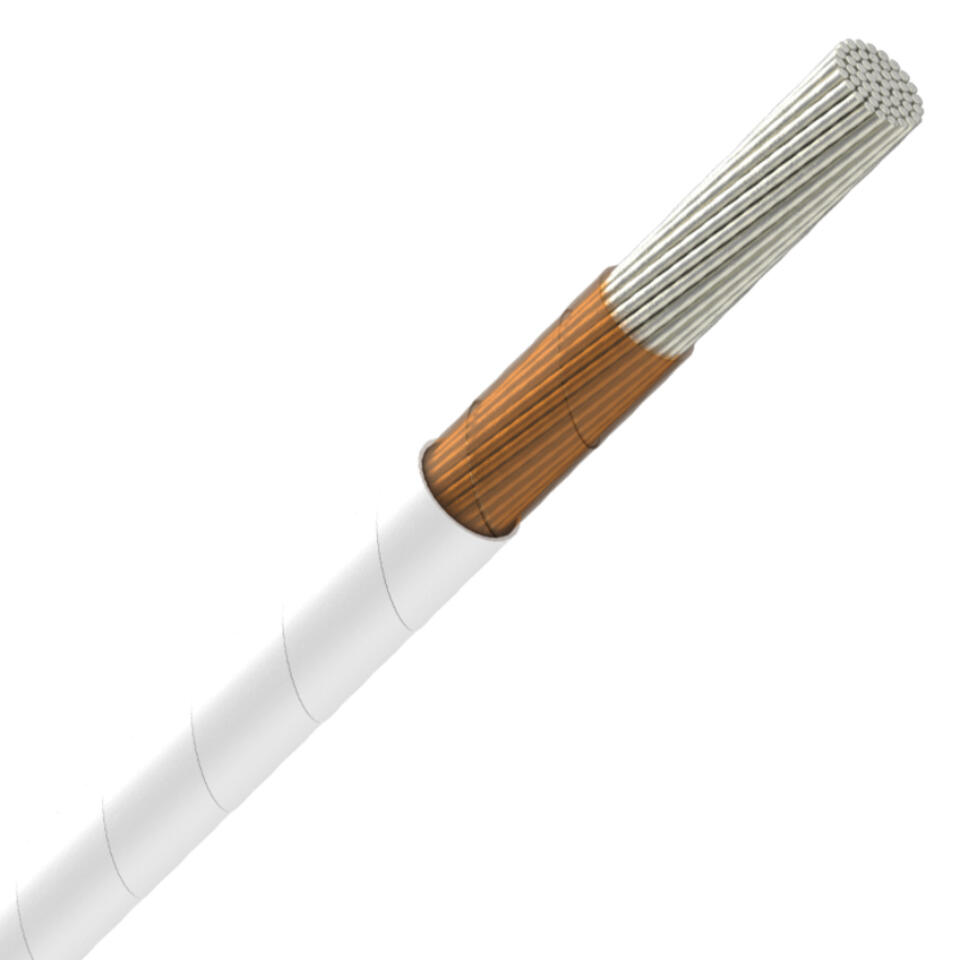

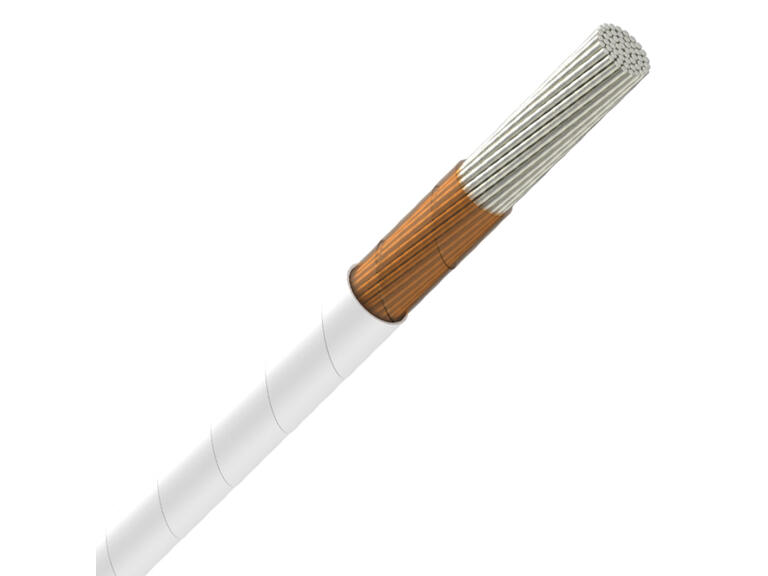

The specifications of EN wires and cables are known under the name Airbus and Eurocopter wires and cables. They are offered in a variety of constructions and are easily recognized as they all start with the prefix EN. EN specifications can also be classified into various categories such as harness and cell wires, coaxial cables, twinax bus cables, quad Ethernet cables, optical cables, flight test cables, fire resistant cables, power cables, and some are also classified as special cables.
Specifications & Downloads
- Core insulation material
- Polytetrafluoroethylene (PTFE)
- Core identification
- Colour
- Screen
- Material outer sheath
- None
- Colour outer sheath
- None
- Model
- Round
- Max. conductor temperature
- 260
- Nominal voltage U
- 115
- Downloads
- EN-Allgemein.pdf
Filter
| Amount | Item No. | Description | On stock | Nominal cross section conductor | Number of cores | Outer diameter approx. | AWG | VE | Unit |
|---|---|---|---|---|---|---|---|---|---|
|
|
A1715-1D2 | 20092812 |
|
6mm² | 2 | 2.76mm | 10 | 1 | Meter |
|
|
EN2267-008A090P | DM08 |
|
4mm² | 1 | 2.26mm | 12 | 1 | Meter |
|
|
EN2267-008A030P | DM12 |
|
4mm² | 1 | 2.26mm | 12 | 1 | Meter |
|
|
EN2267-008A020P |
|
0.5mm² | 1 | 0.8mm | 20 | 1 | Meter | |
|
|
EN2267-008A140S | XDM06-001 |
|
16mm² | 1 | 4.51mm | 6 | 1 | Meter |
|
|
EN2267-008A090S | XDM08-001 |
|
10mm² | 1 | 3.6mm | 8 | 1 | Meter |
|
|
EN2267-008A051P | XDM10-001 |
|
6mm² | 1 | 2.76mm | 10 | 1 | Meter |
|
|
EN2267-008A030S | XDM12-001 |
|
4mm² | 1 | 2.26mm | 12 | 1 | Meter |
|
|
EN2267-008A020S | XDM14-001 |
|
2.5mm² | 1 | 1.8mm | 14 | 1 | Meter |
|
|
EN2267-008A012S | XDM16-001 |
|
1.5mm² | 1 | 1.4mm | 16 | 1 | Meter |
|
|
EN2267-008A010P | XDM18-001 |
|
0.75mm² | 1 | 1mm | 18 | 1 | Meter |
|
|
EN2267-008A006P | XDM20-001 |
|
0.5mm² | 1 | 0.8mm | 20 | 1 | Meter |
|
|
EN2267-008A004P | XDM22-001 |
|
0.34mm² | 1 | 0.66mm | 22 | 1 | Meter |
|
|
EN2267-008A002S | XDM24-001 |
|
0.25mm² | 1 | 0.56mm | 24 | 1 | Meter |
|
|
EN2267-008A001S | XDM26-001 |
|
0.14mm² | 1 | 0.45mm | 26 | 1 | Meter |
|
|
EN2267-010A340S | XDR02-001 |
|
35mm² | 1 | 6.68mm | 2 | 1 | Meter |
|
|
EN2267-010A220S | XDR04-001 |
|
25mm² | 1 | 5.64mm | 4 | 1 | Meter |
|
|
EN2267-010A140S | XDR06-001 |
|
16mm² | 1 | 4.51mm | 6 | 1 | Meter |
|
|
EN2267-010A090S | XDR08-001 |
|
10mm² | 1 | 3.6mm | 8 | 1 | Meter |
|
|
EN2267-010A051S | XDR10-001 |
|
6mm² | 1 | 2.76mm | 10 | 1 | Meter |
|
|
EN2267-010A030S | XDR12-001 |
|
4mm² | 1 | 2.26mm | 12 | 1 | Meter |
|
|
EN2267-010A020S | XDR14-001 |
|
2.5mm² | 1 | 1.8mm | 14 | 1 | Meter |
|
|
EN2267-010A012S | XDR16-007 |
|
1.5mm² | 1 | 1.4mm | 16 | 1 | Meter |
|
|
EN2267-010A010S | XDR18-009 |
|
0.75mm² | 1 | 1mm | 18 | 1 | Meter |
|
|
EN2267-010A006S | XDR20-010 |
|
0.5mm² | 1 | 0.8mm | 20 | 1 | Meter |
|
|
EN2267-010A004S | XDR22-010 |
|
0.34mm² | 1 | 0.66mm | 22 | 2'200 | Meter |
|
|
EN2267-010A002S | XDR24-020 |
|
0.25mm² | 1 | 0.56mm | 24 | 1 | Meter |
|
|
EN2267-010A001S | XDR26-001 |
|
0.14mm² | 1 | 0.45mm | 26 | 1 | Meter |
|
|
EN2267-009B340P | XDRB02-001 |
|
35mm² | 2 | 6.68mm | 2 | 1 | Meter |
|
|
EN2267-009B220P | XDRB04-001 |
|
25mm² | 2 | 5.64mm | 4 | 1 | Meter |
|
|
EN2267-009B140P | XDRB06-001 |
|
16mm² | 2 | 4.51mm | 6 | 1 | Meter |
|
|
EN2267-009B090P | XDRB08-001 |
|
10mm² | 2 | 3.6mm | 8 | 1 | Meter |
|
|
EN2267-009B051P | XDRB10-001 |
|
6mm² | 2 | 2.76mm | 10 | 1 | Meter |
|
|
EN2267-009B030P | XDRB12-001 |
|
4mm² | 2 | 2.26mm | 12 | 1 | Meter |
|
|
EN2267-009B020P | XDRB14-001 |
|
2.5mm² | 2 | 1.8mm | 14 | 1 | Meter |
|
|
EN2267-009B012P | XDRB16-001 |
|
1.5mm² | 2 | 1.4mm | 16 | 1 | Meter |
|
|
EN2267-009B010P | XDRB18-001 |
|
0.75mm² | 2 | 1mm | 18 | 1 | Meter |
|
|
EN2267-009B006P | XDRB20-001 |
|
0.5mm² | 2 | 0.8mm | 20 | 1 | Meter |
|
|
EN2267-009B004P | XDRB22-002 |
|
0.34mm² | 2 | 0.66mm | 22 | 1 | Meter |
|
|
EN2267-009B002P | XDRB24-005 |
|
0.25mm² | 2 | 0.56mm | 24 | 1 | Meter |
|
|
EN2267-009B001P | XDRB26-001 |
|
0.14mm² | 2 | 0.45mm | 26 | 1 | Meter |
|
|
EN2267-009C340P | XDRC02-001 |
|
35mm² | 3 | 6.68mm | 2 | 1 | Meter |
|
|
EN2267-009C220P | XDRC04-001 |
|
25mm² | 3 | 5.64mm | 4 | 1 | Meter |
|
|
EN2267-009C140P | XDRC06-001 |
|
16mm² | 3 | 4.51mm | 6 | 1 | Meter |
|
|
EN2267-009C090P | XDRC08-001 |
|
10mm² | 3 | 3.6mm | 8 | 1 | Meter |
|
|
EN2267-009C051P | XDRC10-001 |
|
6mm² | 3 | 2.76mm | 10 | 1 | Meter |
|
|
EN2267-009C030P | XDRC12-001 |
|
4mm² | 3 | 2.26mm | 12 | 1 | Meter |
|
|
EN2267-009C020P | XDRC14-001 |
|
2.5mm² | 3 | 1.8mm | 14 | 1 | Meter |
|
|
EN2267-009C012P | XDRC16-001 |
|
1.5mm² | 3 | 1.4mm | 16 | 1 | Meter |
|
|
EN2267-009C010P | XDRC18-001 |
|
0.75mm² | 3 | 1mm | 18 | 1 | Meter |
|
|
EN2267-009C006P | XDRC20-001 |
|
0.5mm² | 3 | 0.8mm | 20 | 1 | Meter |
|
|
EN2267-009C004P | XDRC22-001 |
|
0.34mm² | 3 | 0.66mm | 22 | 1 | Meter |
|
|
EN2267-009C002P | XDRC24-001 |
|
0.25mm² | 3 | 0.56mm | 24 | 1 | Meter |
|
|
EN2267-009C001P | XDRC26-001 |
|
0.14mm² | 3 | 0.45mm | 26 | 1 | Meter |
|
|
EN2267-009D051P | XDRD10-001 |
|
6mm² | 4 | 2.76mm | 10 | 1 | Meter |
|
|
EN2267-009D012P | XDRD16-002 |
|
1.5mm² | 4 | 1.4mm | 16 | 1 | Meter |
|
|
EN2267-009D004P | XDRD22-002 |
|
0.34mm² | 4 | 0.66mm | 22 | 1 | Meter |
|
|
EN2267-007B140P | XPN06-001 |
|
16mm² | 2 | 4.51mm | 6 | 1 | Meter |
|
|
EN2267-007B051P | XPN10-001 |
|
6mm² | 2 | 2.76mm | 10 | 1 | Meter |
|
|
EN2267-007B030P | XPN12-001 |
|
4mm² | 2 | 2.26mm | 12 | 1 | Meter |
|
|
EN2267-007B020P | XPN14-001 |
|
2.5mm² | 2 | 1.8mm | 14 | 1 | Meter |
|
|
EN2267-007B012P | XPN16-001 |
|
1.5mm² | 2 | 1.4mm | 16 | 1 | Meter |
|
|
EN2267-007B010P | XPN18-001 |
|
0.75mm² | 2 | 1mm | 18 | 1 | Meter |
|
|
EN2267-007B006P | XPN20-001 |
|
0.5mm² | 2 | 0.8mm | 20 | 1 | Meter |
|
|
EN2267-007B004P | XPN22-001 |
|
0.34mm² | 2 | 0.66mm | 22 | 1 | Meter |
|
|
EN2267-007B002P | XPN24-001 |
|
0.25mm² | 2 | 0.56mm | 24 | 1 | Meter |
|
|
EN2267-007B090P | XPN24-001 |
|
10mm² | 2 | 3.6mm | 8 | 1 | Meter |
|
|
EN2267-007B001P | XPN26-001 |
|
0.14mm² | 2 | 0.45mm | 26 | 1 | Meter |
|
|
EN2267-007C090P | XQL08-001 |
|
10mm² | 3 | 3.6mm | 8 | 1 | Meter |
|
|
EN2267-007C051P | XQL10-001 |
|
6mm² | 3 | 2.76mm | 10 | 1 | Meter |
|
|
EN2267-007C030P | XQL12-001 |
|
4mm² | 3 | 2.26mm | 12 | 1 | Meter |
|
|
EN2267-007C020P | XQL14-001 |
|
2.5mm² | 3 | 1.8mm | 14 | 1 | Meter |
|
|
EN2267-007C012P | XQL16-001 |
|
1.5mm² | 3 | 1.4mm | 16 | 1 | Meter |
|
|
EN2267-007C010P | XQL18-001 |
|
0.75mm² | 3 | 1mm | 18 | 1 | Meter |
|
|
EN2267-007C006P | XQL20-001 |
|
0.5mm² | 3 | 0.8mm | 20 | 1 | Meter |
|
|
EN2267-007C004P | XQL22-001 |
|
0.34mm² | 3 | 0.66mm | 22 | 1 | Meter |
|
|
EN2267-007C140P | XQL24-001 |
|
16mm² | 3 | 4.51mm | 6 | 1 | Meter |
|
|
EN2267-007C002P | XQL24-001 |
|
0.25mm² | 3 | 0.56mm | 24 | 1 | Meter |
|
|
EN2267-007C001P | XQL26-001 |
|
0.14mm² | 3 | 0.45mm | 26 | 1 | Meter |
|
|
EN2267-007D-140P | XRK06-001 |
|
16mm² | 4 | 4.51mm | 6 | 1 | Meter |
|
|
EN2267-007D-090P | XRK08-001 |
|
10mm² | 4 | 3.6mm | 8 | 1 | Meter |
|
|
EN2267-007D-051P | XRK10-001 |
|
6mm² | 4 | 2.76mm | 10 | 1 | Meter |
|
|
EN2267-007D-030P | XRK12-001 |
|
4mm² | 4 | 2.26mm | 12 | 1 | Meter |
|
|
EN2267-007D-020P | XRK14-001 |
|
2.5mm² | 4 | 1.8mm | 14 | 1 | Meter |
|
|
EN2267-007D-012P | XRK16-001 |
|
1.5mm² | 4 | 1.4mm | 16 | 1 | Meter |
|
|
EN2267-007D-010P | XRK18-001 |
|
0.75mm² | 4 | 1mm | 18 | 1 | Meter |
|
|
EN2267-007D-006P | XRK20-001 |
|
0.5mm² | 4 | 0.8mm | 20 | 1 | Meter |
|
|
EN2267-007D-004P | XRK22-001 |
|
0.34mm² | 4 | 0.66mm | 22 | 1 | Meter |
|
|
EN2267-007D-002P | XRK24-001 |
|
0.25mm² | 4 | 0.56mm | 24 | 1 | Meter |
|
|
EN2267-007D-001P | XRK26-001 |
|
0.14mm² | 4 | 0.45mm | 26 | 1 | Meter |
