Product features

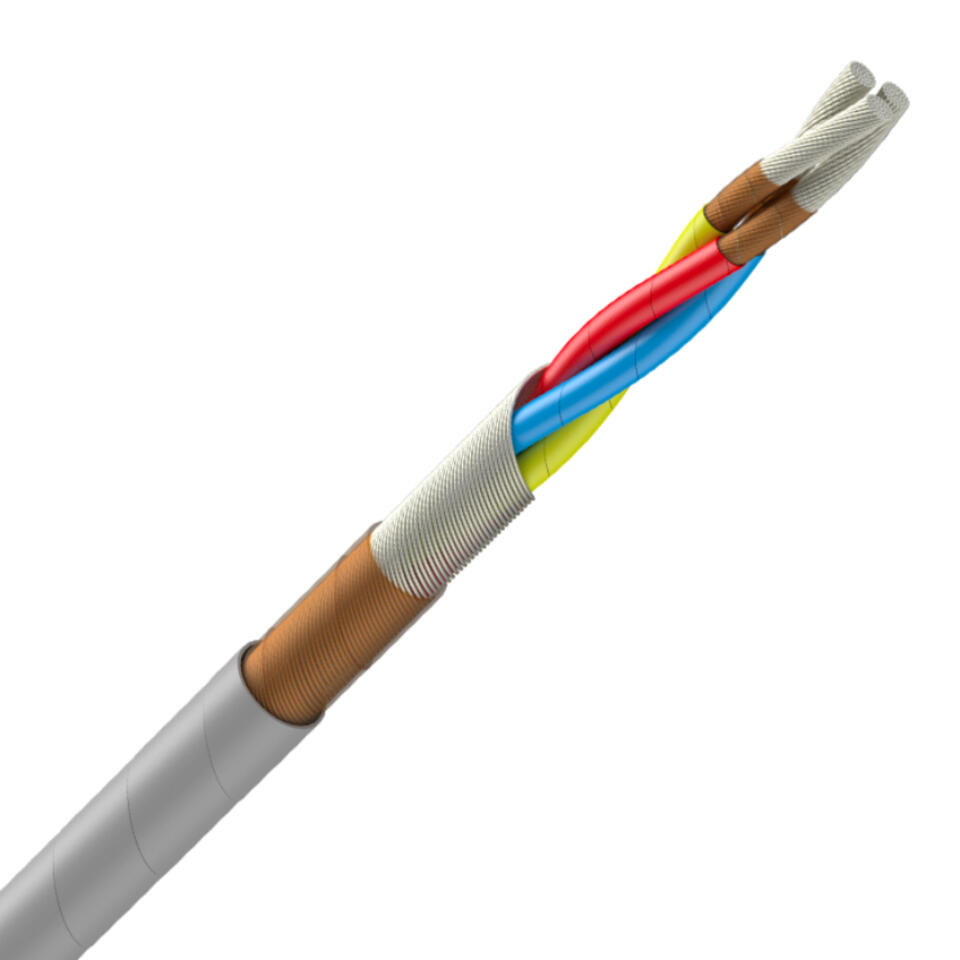

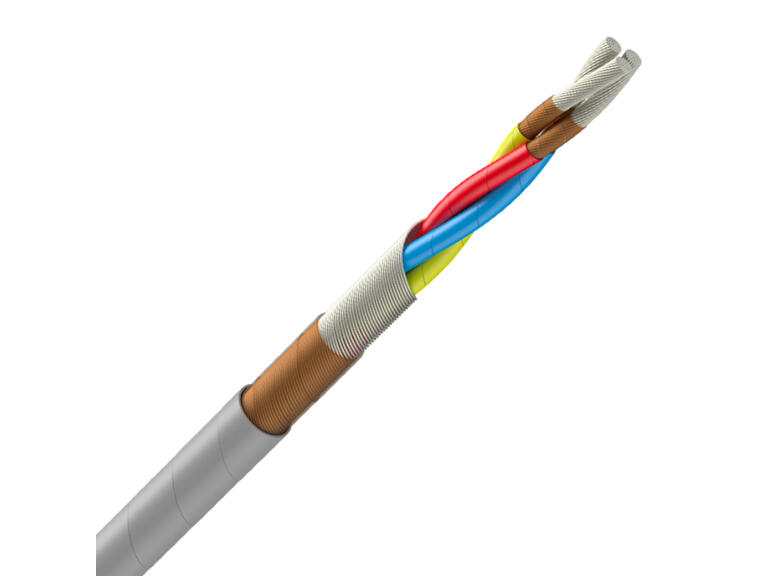

The specifications of EN wires and cables are known under the name Airbus and Eurocopter wires and cables. They are offered in a variety of constructions and are easily recognized as they all start with the prefix EN. EN specifications can also be classified into various categories such as harness and cell wires, coaxial cables, twinax bus cables, quad Ethernet cables, optical cables, flight test cables, fire resistant cables, power cables, and some are also classified as special cables.
Specifications & Downloads
- Core identification
- Colour
- Screen
- 1
- Model
- Round
- Max. conductor temperature
- 200
- Nominal voltage U
- 115
- Downloads
- EN-Allgemein.pdf
Filter
| Amount | Item No. | Description | On stock | Nominal cross section conductor | Number of cores | Core insulation material | Material outer sheath | Colour outer sheath | Outer diameter approx. | AWG | VE | Unit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
EN2713-003B004F |
|
0.34mm² | 2 | Fluorinated ethylene propylene (FEP) | None | None | 0.66mm | 22 | 1 | Meter | |
|
|
EN2713-003B006F |
|
0.5mm² | 2 | Other | None | None | 0.8mm | 20 | 1 | Meter | |
|
|
EN2713-003B010F |
|
0.75mm² | 2 | Other | None | None | 1mm | 18 | 1 | Meter | |
|
|
EN2713-003B012F |
|
1.5mm² | 2 | Other | None | None | 1.4mm | 16 | 1 | Meter | |
|
|
EN2713-007B002F |
|
0.5mm² | 2 | Fluorinated ethylene propylene (FEP) | Fluorinated ethylene propylene (FEP) | Light blue | 0.8mm | 20 | 1 | Meter | |
|
|
EN2713-007B006F |
|
0.5mm² | 2 | Fluorinated ethylene propylene (FEP) | Fluorinated ethylene propylene (FEP) | Light blue | 0.8mm | 20 | 1 | Meter | |
|
|
EN2713-007C002F |
|
0.5mm² | 2 | Fluorinated ethylene propylene (FEP) | Fluorinated ethylene propylene (FEP) | Light blue | 0.8mm | 20 | 1 | Meter | |
|
|
EN2713-007C012F |
|
0.5mm² | 2 | Fluorinated ethylene propylene (FEP) | Fluorinated ethylene propylene (FEP) | Light blue | 0.8mm | 20 | 1 | Meter | |
|
|
EN2713-007A030F | XSJ12-002 |
|
4mm² | 1 | Fluorinated ethylene propylene (FEP) | Fluorinated ethylene propylene (FEP) | weiss | 2.26mm | 12 | 1 | Meter |
|
|
EN2713-007A020F | XSJ14-002 |
|
2.5mm² | 1 | Fluorinated ethylene propylene (FEP) | Fluorinated ethylene propylene (FEP) | weiss | 1.8mm | 14 | 1 | Meter |
|
|
EN2713-007A012F | XSJ16-002 |
|
1.5mm² | 1 | Fluorinated ethylene propylene (FEP) | Fluorinated ethylene propylene (FEP) | Light blue | 1.4mm | 16 | 1 | Meter |
|
|
EN2713-007A010F | XSJ18-003 |
|
0.75mm² | 1 | Fluorinated ethylene propylene (FEP) | Fluorinated ethylene propylene (FEP) | weiss | 1mm | 18 | 1 | Meter |
|
|
EN2713-007A006F | XSJ20-003 |
|
0.5mm² | 1 | Fluorinated ethylene propylene (FEP) | Fluorinated ethylene propylene (FEP) | Light blue | 0.8mm | 20 | 1 | Meter |
|
|
EN2713-007A004F | XSJ22-003 |
|
0.34mm² | 1 | Fluorinated ethylene propylene (FEP) | Fluorinated ethylene propylene (FEP) | weiss | 0.66mm | 22 | 1 | Meter |
|
|
EN2713-007A002F | XSJ24-003 |
|
0.25mm² | 1 | Fluorinated ethylene propylene (FEP) | Fluorinated ethylene propylene (FEP) | Light blue | 0.56mm | 24 | 1 | Meter |
|
|
EN2713-007A001F | XSJ26-002 |
|
0.14mm² | 1 | Fluorinated ethylene propylene (FEP) | Fluorinated ethylene propylene (FEP) | weiss | 0.45mm | 26 | 1 | Meter |
|
|
EN2713-007B012F | XTK12-002 |
|
1.5mm² | 2 | Fluorinated ethylene propylene (FEP) | Fluorinated ethylene propylene (FEP) | Light blue | 1.4mm | 16 | 1 | Meter |
|
|
EN2713-007B010F | XTK18-002 |
|
0.75mm² | 2 | Fluorinated ethylene propylene (FEP) | Fluorinated ethylene propylene (FEP) | weiss | 1mm | 18 | 1 | Meter |
|
|
EN2713-007C004F | XUD22-003 |
|
0.34mm² | 3 | Fluorinated ethylene propylene (FEP) | Fluorinated ethylene propylene (FEP) | weiss | 0.66mm | 22 | 1 | Meter |
