Product features

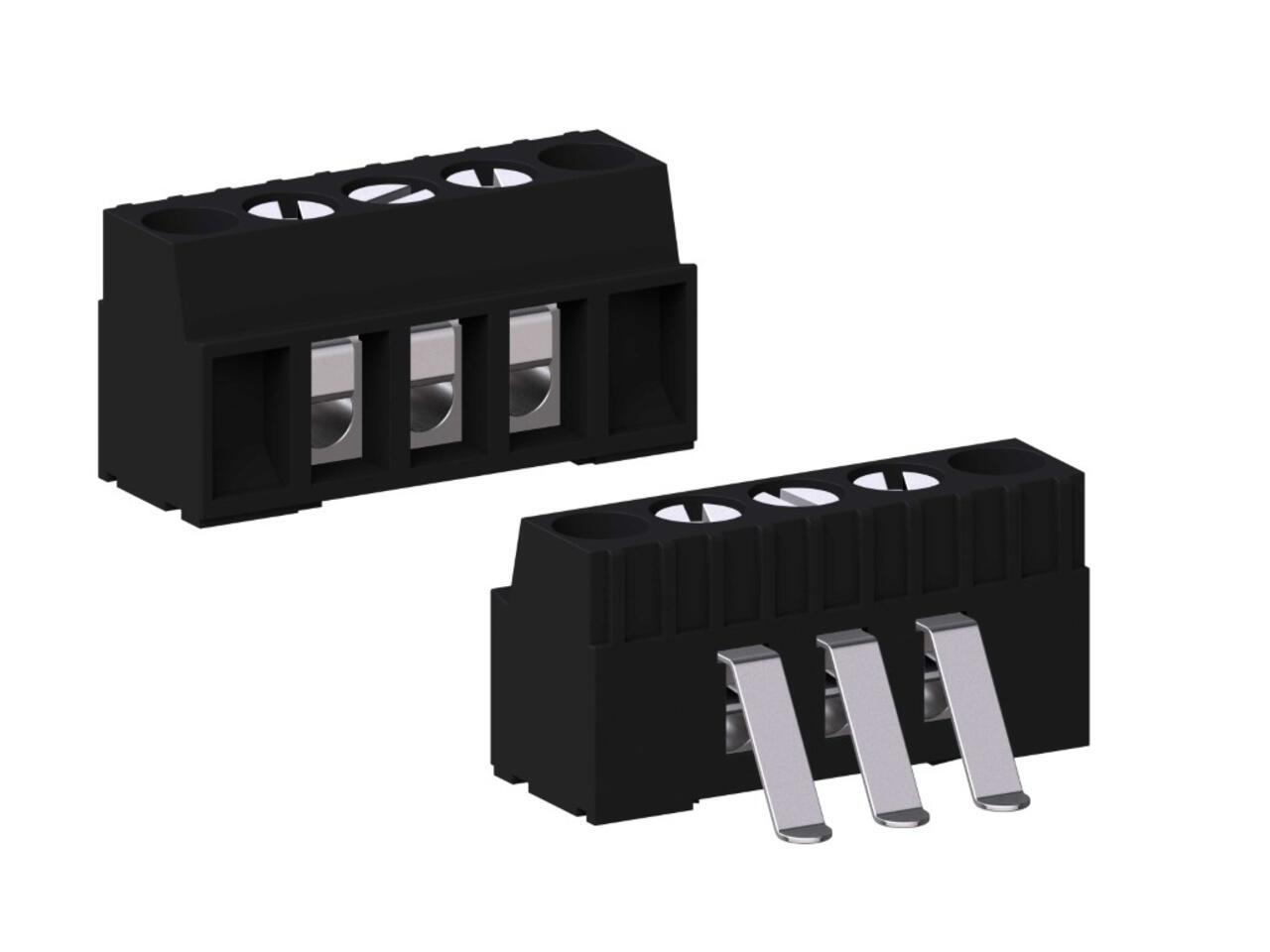

The 930-A-SMD versions with 3.5 mm pitch use screw connections with wire protection._x000d_ This wire protection extends beyond the back of the housing and is bent downward to contact the solder pads. The solder tails press on the solder pads with pretension after mounting the terminal strip. This ensures good current transfer._x000d_ The housings are equipped with two lateral mounting flanges for secure mechanical fixation on the PCB. _x000d_ The described terminals are packaged in stick magazines. Tape packaging on request.
Specifications & Downloads
- Variante
- Leiterplattenklemmen
- Raster
- 3.50 mm
- Nennquerschnitt
- 1
- Drahteinführrichtung
- Horizontal
- Drahtschutz
- 0
- Leiterplattenanschluss
- SMD
- Nennstrom
- 13.5
- Spannungsfestigkeit
- 130 V nach EN 60998-1
- Drahtanschlusstechnik
- Screw connection
- Verpackungsart
- Tubes (Stangen)
- Marke
- WECO
- Downloads
- 930-A-SMD_de.pdf
Filter
| Amount | Item No. | Description | On stock | Polzahl | Gehäuselänge | VE | Unit |
|---|---|---|---|---|---|---|---|
|
|
930-A-SMD/09 | 20.870.479 Serie 930 WECO |
|
9 | 31.8mm | 364 | Stk |
|
|
930-A-SMD/03 | 20.870.473 Serie 930 WECO |
|
3 | 10.8mm | 200 | Stk |
|
|
930-A-SMD/06 | 20.870.476 Serie 930 WECO |
|
6 | 21.3mm | 100 | Stk |
|
|
930-A-SMD/05 | 20.870.475 Serie 930 WECO |
|
5 | 17.8mm | 100 | Stk |
|
|
930-A-SMD/02 | 20.870.472 Serie 930 WECO |
|
2 | 7.3mm | 250 | Stk |
|
|
930-A-SMD/04 | 20.870.474 Serie 930 WECO |
|
4 | 14.3mm | 200 | Stk |
