Product features

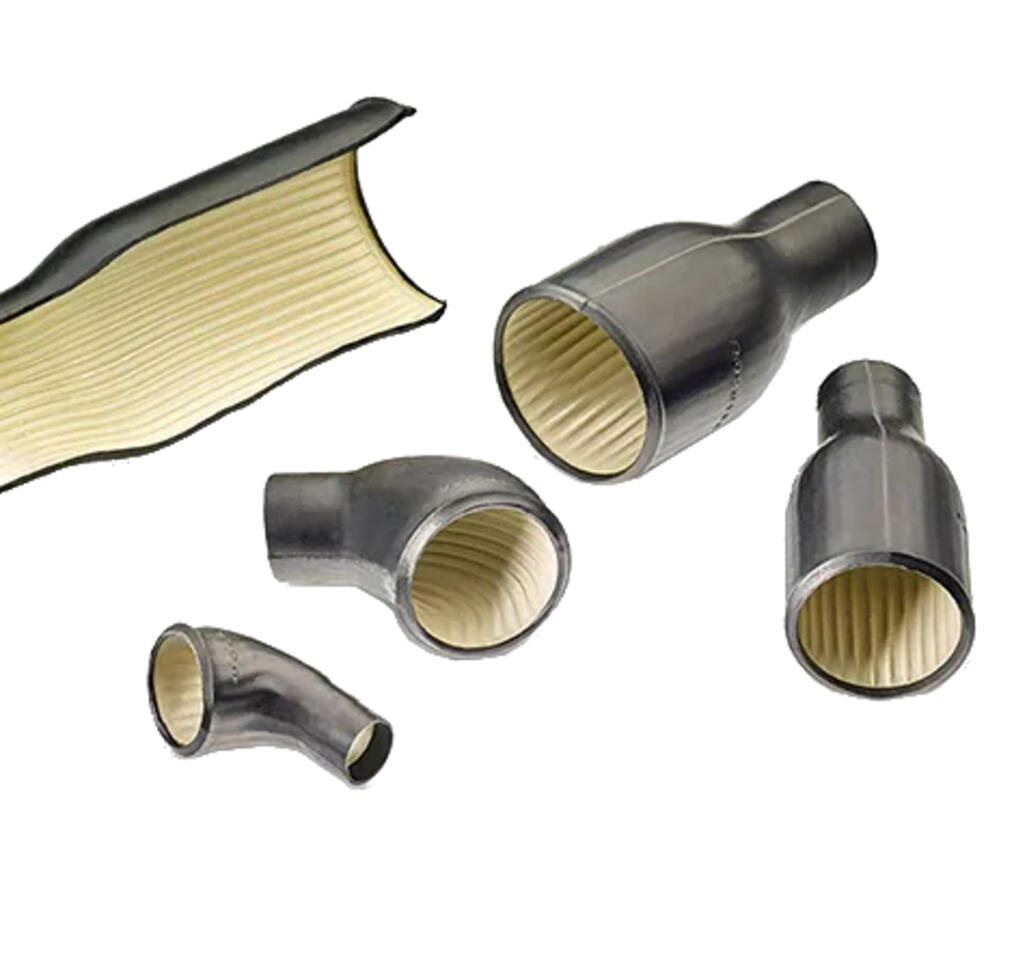

The tinned copper sealing of the Rayaten shielding sleeves can be shrunk onto cables and end housings. They provide simple protection against high-grade EMI and RFI interference. The range of Rayaten shrink tubing molded parts includes protective caps/sleeves and tubes that offer outstanding EMI shielding over a wide frequency range. These molded parts are as effective as systems with optimized braid shielding and shielded connections. The shielding is a circumferential metallic seal that adapts to the heat shrink profile when cooled.
Filter
| Amount | Item No. | Description | On stock | EAN | Diameter shaft before shrink | Diameter shaft after shrink | Total length after shrink | Inner diameter finger before shrink | Inner diameter finger after shrink | Formteilwinkel | VE | Unit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
202S121-25S-G13-0 | 009125-000 |
|
7611971021746 | 20mm | 11mm | 45mm | 11mm | 5mm | 180° | 1 | Stk |
|
|
202S174-25S-0 | 028975-000 |
|
7611971021791 | 47mm | 35.1mm | 132mm | 36mm | 15.8mm | 180° | 1 | Stk |
|
|
202S132-25S-0 | 090819-000 |
|
7611971021753 | 24mm | 15mm | 60mm | 15mm | 6mm | 180° | 1 | Stk |
|
|
222S163-25S-0 | 137798-000 |
|
7611971036351 | 43mm | 28.2mm | kA | 26mm | 10mm | 90° | 1 | Stk |
|
|
222S174-25S-0 | 276329-000 |
|
7611971022088 | 47mm | 35.1mm | kA | 36mm | 15.8mm | 90° | 1 | Stk |
|
|
222S132-25S-0 | 296022-000 |
|
7611971022064 | 24mm | 14.2mm | kA | 15mm | 6mm | 90° | 1 | Stk |
|
|
202S152-25S-0 | 573959-000 |
|
7611971021777 | 36mm | 22mm | 85mm | 22mm | 8.5mm | 180° | 1 | Stk |
|
|
202S163-25S-0 | 588849-000 |
|
7611971021784 | 43mm | 26mm | 110mm | 26mm | 10mm | 180° | 1 | Stk |
|
|
222S132-25S-G28-0 | 611501-000 |
|
24mm | 14.2mm | kA | 15mm | 6mm | 90° | 1 | Stk | |
|
|
202S142-25C-0 | 689778-000 |
|
31mm | 22mm | 72mm | 18mm | 7.2mm | 180° | 1 | Stk | |
|
|
202S142-25S-0 | 689778-000 |
|
7611971021760 | 31mm | 22mm | 72mm | 18mm | 7.2mm | 180° | 1 | Stk |
|
|
222S142-25S-0 | 754255-000 |
|
7611971022071 | 31mm | 22.4mm | kA | 22mm | 8.5mm | 90° | 1 | Stk |
|
|
222S152-25S-0 | 893201-000 |
|
7611971036344 | 36mm | 22.4mm | kA | 22mm | 8.5mm | 90° | 1 | Stk |
|
|
202S132-25S/86-0 | 944623-000 |
|
24mm | 15mm | 60mm | 15mm | 6mm | 180° | 1 | Stk | |
|
|
202S121-25S-0 | 979945-000 |
|
7611971021739 | 20mm | 11mm | 45mm | 11mm | 5mm | 180° | 1 | Stk |
|
|
222S121-25C-0 | EK7301-000 |
|
20mm | 10.4mm | kA | 11mm | 5mm | 90° | 1 | Stk |
