Product features

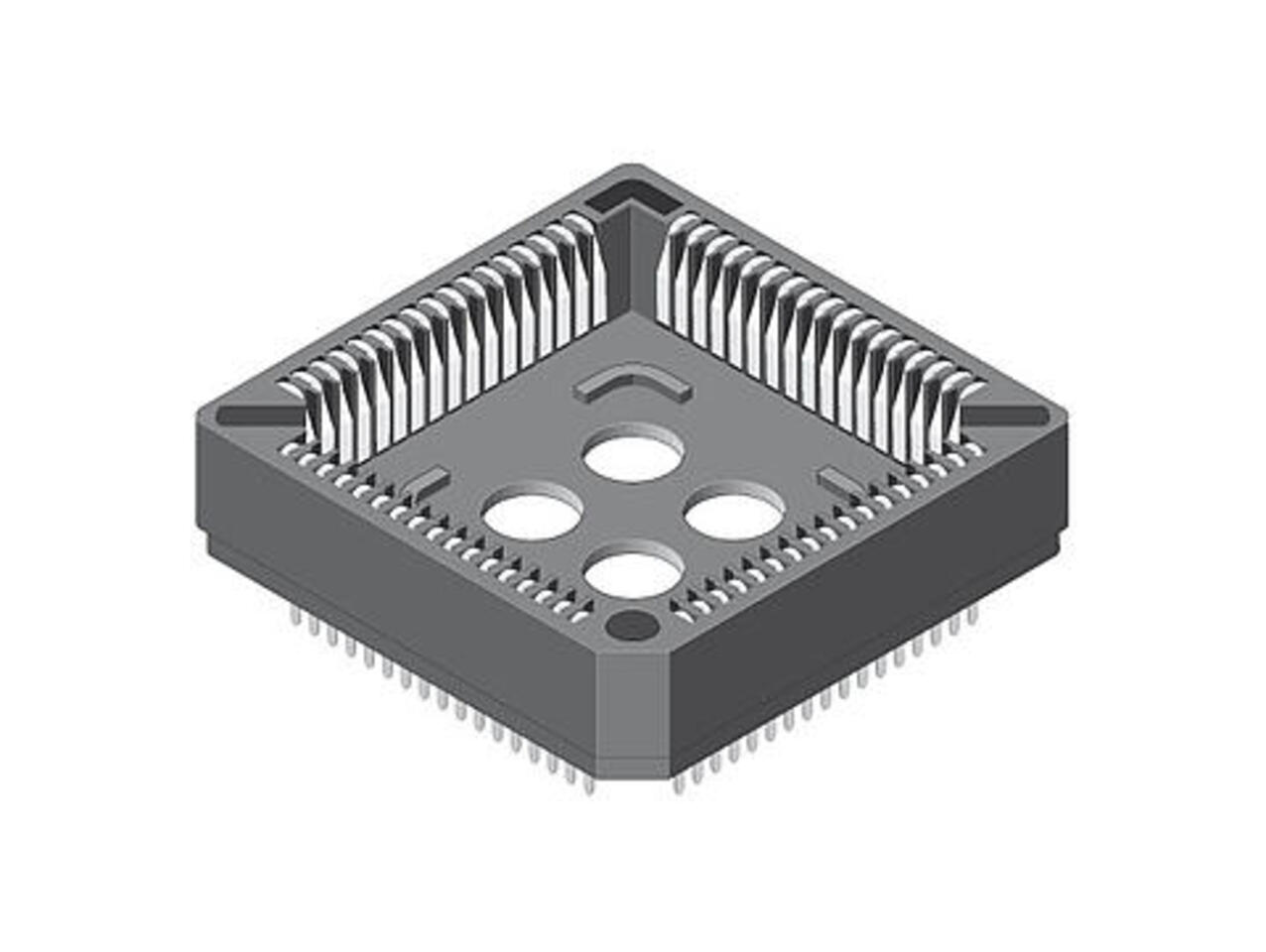

PLCC Socket Series 081 Variant 1
PLCC sockets according to JEDEC MO-047/MO-052 for through-hole soldering
PLCC sockets with through-hole pins and precision contacts (according to JEDEC MO-047 / MO-052) which by their special shape ensure secure chip retention.
Further technical data and versions or pin counts not listed here can be found in datasheets/product catalogs in the download area.
Please feel free to ask us!
Specifications & Downloads
- Variante
- PLCC Sockel
- Raster
- 1.27 mm
- Kontaktmaterial
- Phosphor Bronze
- Variante des Sockels
- PLCC Sockel
- Ausrichtung zu PCB
- Vertikal
- Leiterplattenanschluss
- THT
- Betriebstemperatur
- -40°C bis +85°C
- Sockellayout
- PLCC
- Isolationsmaterial
- Hochtemperaturfestes Thermoplast UL94V-0
- Verpackungsart
- Tubes (Stangen)
- Nennstrom
- 1
- Nennspannung
- 100 VRMS / VDC / Luft- und Kriechstrecken beachten
- Spannungsfestigkeit
- 600 VRMS für 1 Minute
- Marke
- MPE-Garry
- Downloads
- ProductChangeNotification_PCN_Serie081-1.pdf MPE-Garry_PLCC-Sockel.pdf
Filter
| Amount | Item No. | Description | On stock | Polzahl | VE | Unit |
|---|---|---|---|---|---|---|
|
|
081-1-028-0-XT0 | M-PLCC 28 T-H blackU |
|
28 | 27 | Stk |
|
|
081-1-032-0-XT0 | M-PLCC 32 T-H blackU |
|
32 | 23 | Stk |
|
|
081-1-044-0-XT0 | M-PLCC 44 T-H blackU |
|
44 | 21 | Stk |
|
|
081-1-052-0-XT0 | M-PLCC 52 T-H blackU |
|
52 | 19 | Stk |
|
|
081-1-068-0-XT0 | M-PLCC 68 T-H blackU |
|
68 | 15 | Stk |
|
|
081-1-084-0-XT0 | M-PLCC 84 T-H blackU |
|
84 | 13 | Stk |
