Product features

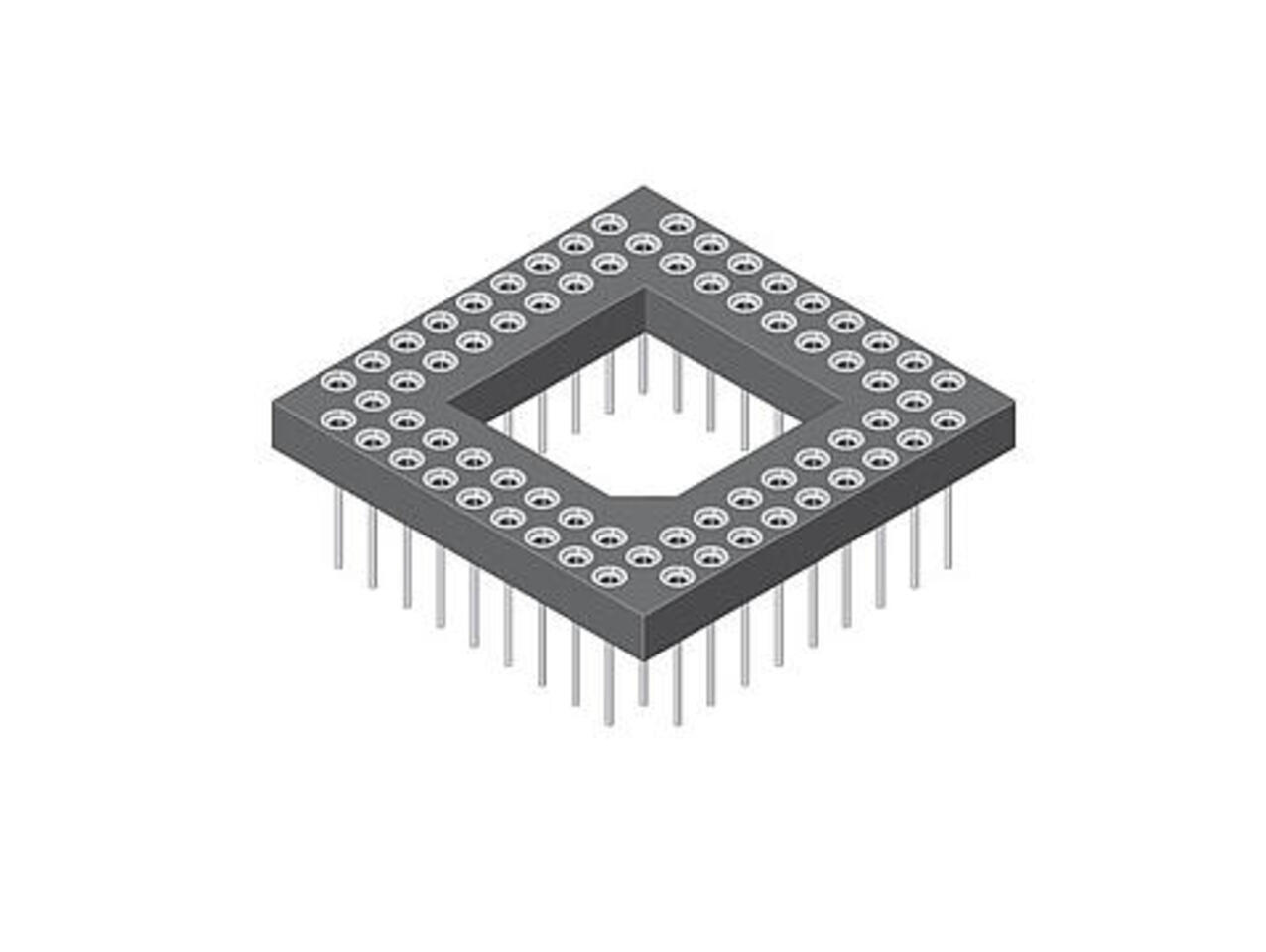

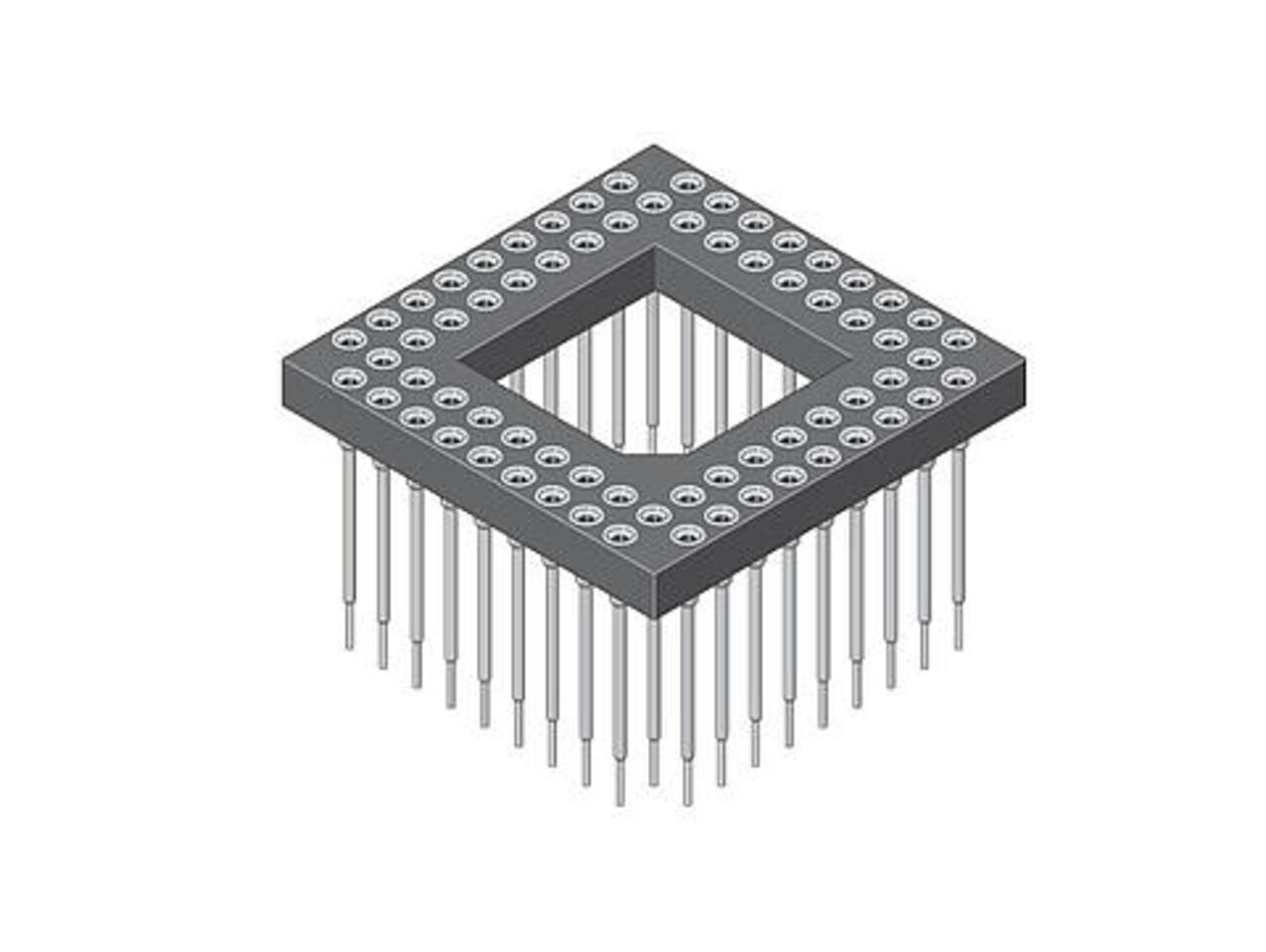

PGA Sockets 2.54 mm Series 054 in Variants 1 and 2
PGA sockets available with a variety of different contacts in sizes from 4×5 to 22×22.
Further technical data and versions or pin counts not listed here can be found in datasheets/product catalogs in the download area.
Please feel free to ask us!
Specifications & Downloads
- Variante
- PGA Sockel
- Raster
- 2.54 mm
- Kontaktmaterial
- Copper alloy
- Veredelung Kontakt
- Sn (tin plating)
- Variante des Sockels
- PGA Sockel
- Kontakttyp
- Standard B
- Ausrichtung zu PCB
- Vertikal
- Leiterplattenanschluss
- THT
- Betriebstemperatur
- -55°C bis + 125°C
- Isolationsmaterial
- Hochtemperaturfestes Thermoplast UL94V-0
- Nennstrom
- 1
- Nennspannung
- 100 VRMS / VDC / Luft- und Kriechstrecken beachten
- Spannungsfestigkeit
- 700 VRMS für 1 Minute
- Marke
- MPE-Garry
- Downloads
- MPE-Garry_Serie054.pdf
Filter
| Amount | Item No. | Description | On stock | Polzahl | Sockellayout | VE | Unit |
|---|---|---|---|---|---|---|---|
|
|
054-1-118-B1LTF-XS0 | PGA 145 STG B 6FC 15/118 |
|
145 | PGA - Footprint-Nr. 15x15 | 104 | Stk |
|
|
054-2-054-B1LTF-XS0 | PGA-Sockel, THT |
|
68 | PGA - Footprint-Nr. 11x11 | 1 | Stk |
