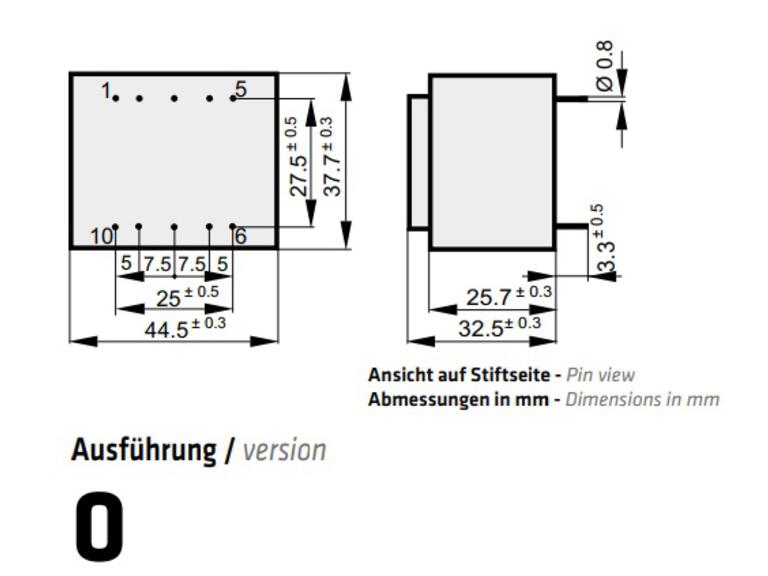

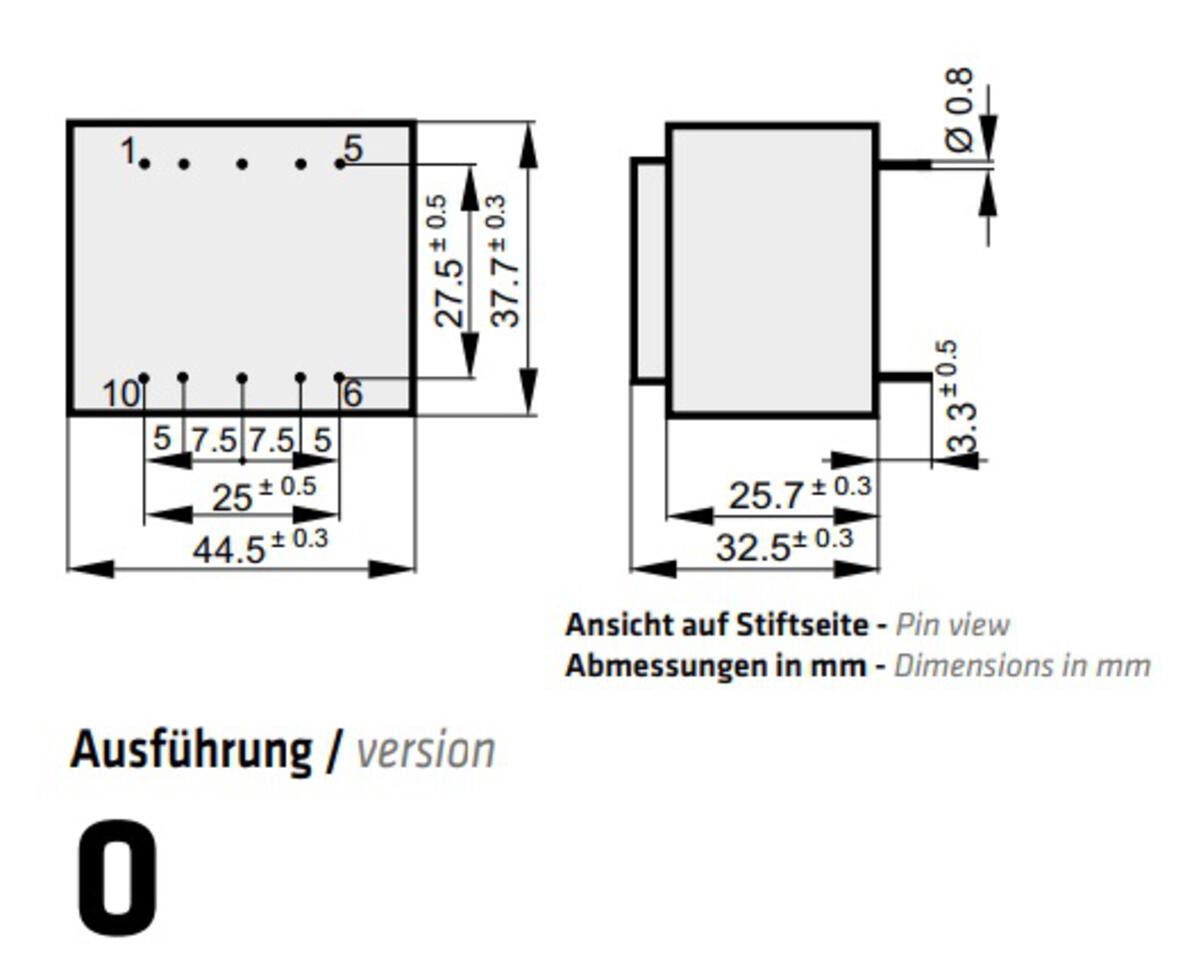

Transformer EI42/14.8 5.0VA housing 0 pitch 27.5mm – Marschner

PCB Transformer, Size EI42/14.8 – 5.0VA

Decisive advantages of Marschner EI38-EI54 transformers:
– Compact construction with a power range up to 23 VA
– Optimal installation height for use on printed circuit boards
– Not short-circuit proof or conditionally short-circuit proof with internal temperature fuse
– Excellent temperature change behavior due to vacuum potting
– External protection by PTC possible
– 100% tested piece-by-piece with 4000 V primary to secondary
– Temperature/insulation classes ta40°C/B, ta70°C/B
– Highest safety and durability
– Approvals: VDE 0570, EN61558, UL506, CSA approved, ENEC10
– Firm seating on circuit board by additional mounting options
– Two-chamber winding
– High impulse voltage resistance
– Self-extinguishing housing material

All sizes can be customized to customer requirements:
– Other primary/secondary voltages
– Individual power
– Unpotted versions
– Special pin assignments
– Higher temperature classes
– Built-in thermal fuse/switch possible
– Other housing/connection/mounting options
– Space-saving mounting by internal mounting tabs possible

Further technical data and versions or voltages not listed here can be found in datasheets/product catalogs in the download area.

Please feel free to contact us!
