Transformer EI30/15.5 2.0VA – Marschner

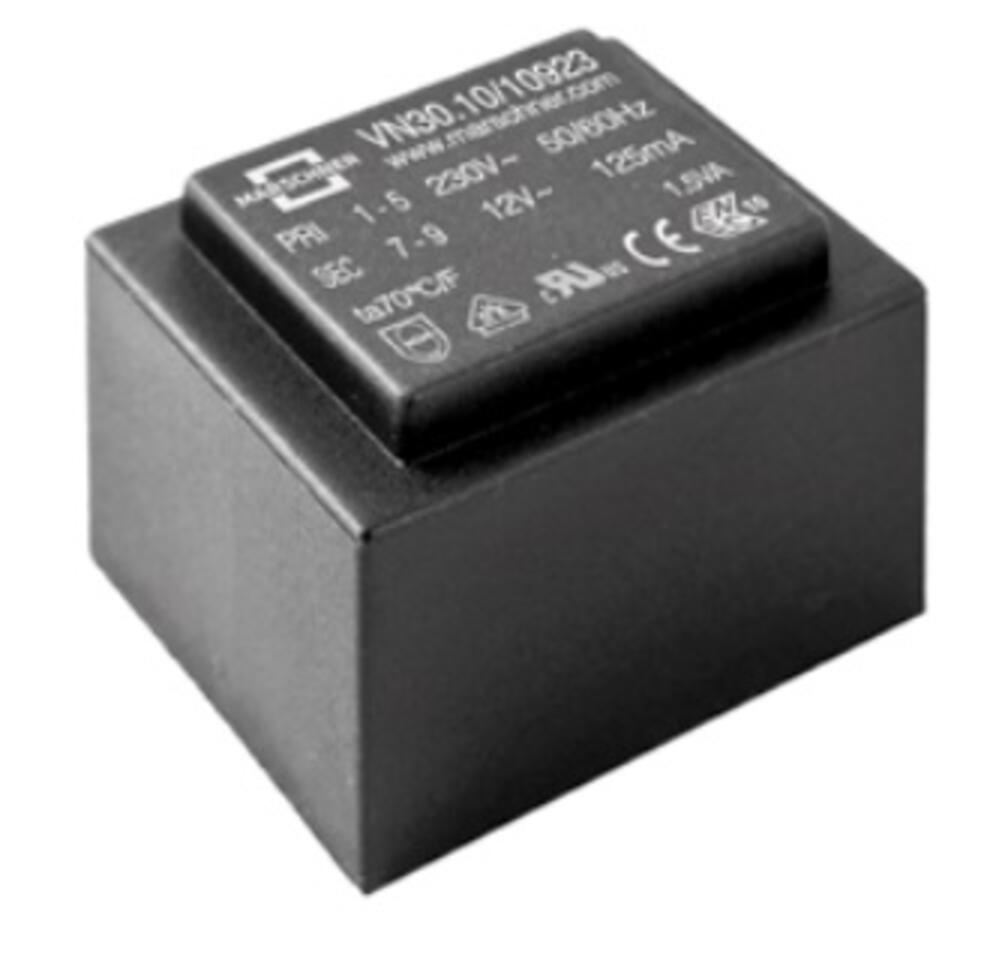

PCB Transformer, Size EI30/15.5 – 2.0VA

Decisive advantages of Marschner EI30 transformers:
– Compact construction with a power range up to 3.0 VA
– Minimal installation height
– Absolutely short-circuit proof
– Excellent temperature change behavior due to epoxy vacuum potting
– 100% tested piece-by-piece with 4000 V primary to secondary
– Temperature/insulation class ta70°C/F
– Highest safety and durability
– Approvals: VDE 0570, EN61558, UL506, UL1585, CSA approved, ENEC10
– Two-chamber winding
– High impulse voltage resistance- optimal for use on printed circuit boards
– VDE certificates for passed glow wire test available

All sizes can be customized to customer requirements:
– Other primary/secondary voltages
– Individual power
– Unpotted versions
– Special pin assignments
– Higher temperature classes

Further technical data and versions or voltages not listed here can be found in datasheets/product catalogs in the download area.

Please feel free to contact us!
