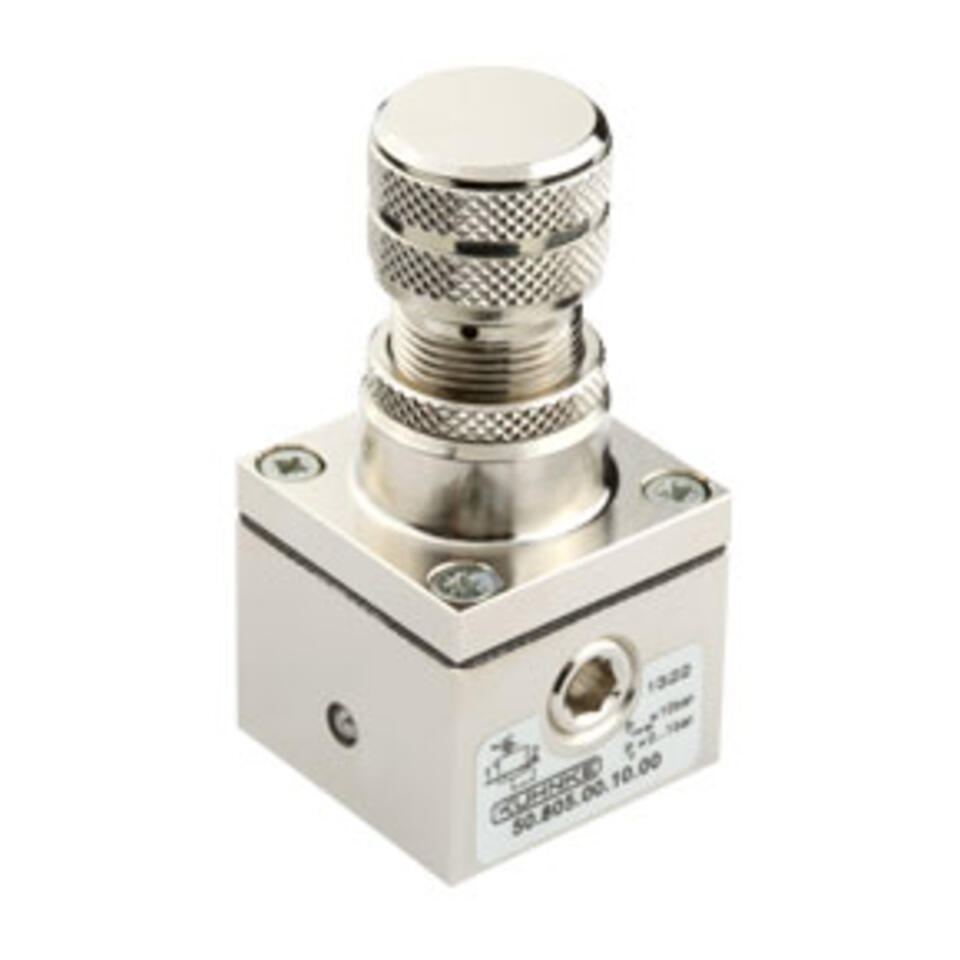

Pressure regulator for manifold mounting

Pressure regulators from Kendrion Kuhnke for mounting on connection plate

These universally usable precision pressure regulators are characterized by their small size and high flow rates with high regulation accuracy. The modular design allows a cost-optimized configuration tailored to the application. Reliable function for smooth operation is guaranteed over a long service life. Adjustment is done via a rotary knob. The version without secondary venting is particularly suitable for use with water. The brass housing makes these pressure regulators particularly robust. Installation is space-saving by means of a flange on the underside of the pressure regulator. All pressure regulators can be designed for different pressure or regulation ranges on request. Seals are available in NBR, EPDM, and Viton (FKM). Seals can thus be easily adapted for special media such as oxygen (O2) or drinking water (H2O).

Medium use:
Non-aggressive media

Materials:
Housing: brass, galvanized, nickel-plated / plastic
Seals: NBR, fabric reinforced
