Product features

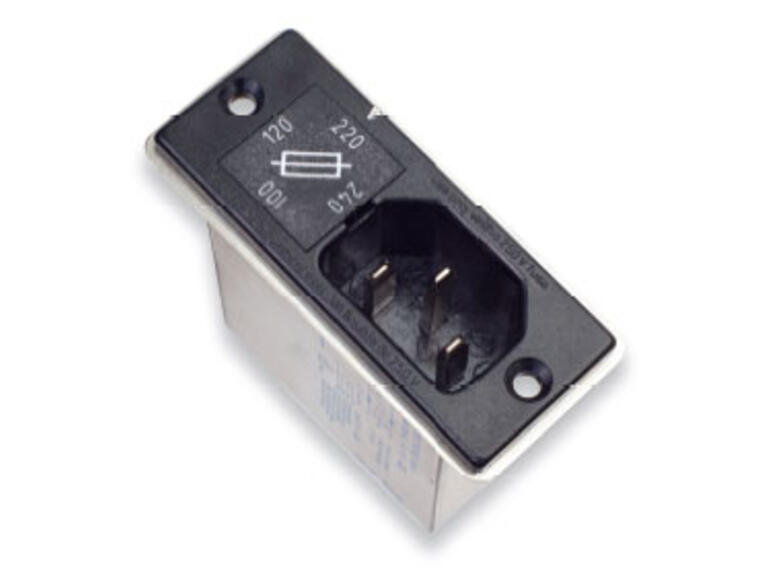

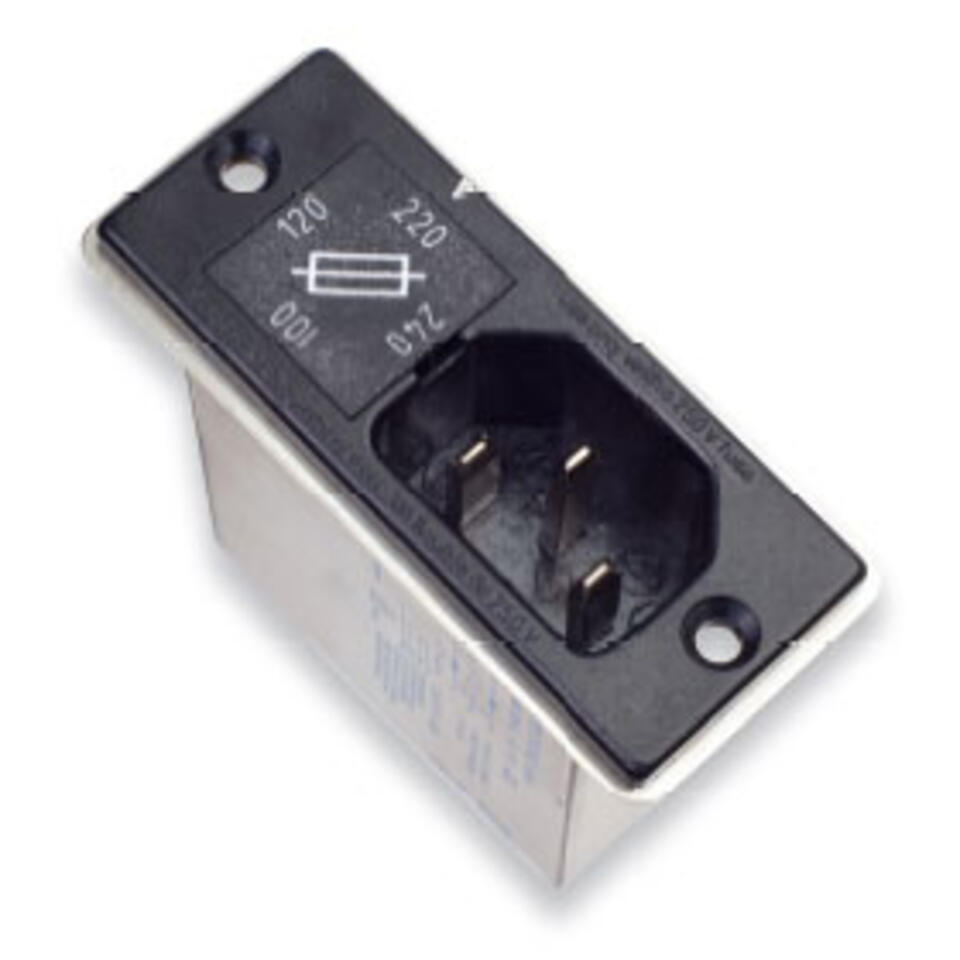

Power Line Filter Series HGN Variant 369 1x Fuse
Power line filter with device plug, fuse holder (1 fuse 5x20mm)
Voltage selector for 100V, 120V, 220V and 240V
FEATURES
The HGN-369 power input modules are used in applications which have the ON/OFF switch on the front but the main power entrance on the back. This series features an IEC plug, voltage selector with four different voltages (100V, 120V, 220V, 240V) and a fuse holder for one European 5×20 mm fuse. The filter is housed in a metal enclosure to provide maximum protection against common-mode and differential-mode interference. These filters are also available for medical devices with low leakage current according to UL 544 and UL2601.
APPLICATIONS
Computer and network equipment, measurement and control instruments, data processing equipment, laboratory equipment, switch mode power supplies and other electronic equipment.
Detailed technical data can be found in the datasheets in the download area
Specifications & Downloads
- Nennspannung
- 120 VAC / 60Hz, 250 VAC / 50Hz
- Betriebstemperatur
- -25°C bis +85°C
- Anzahl Sicherungen
- 1 Sicherung 5 x 20 mm
- Gerätestecker Ausführung
- Standard Version
- Marke
- MPE-Garry
- Downloads
- hgn_369.pdf
Filter
| Amount | Item No. | Description | On stock | Nennstrom | VE | Unit |
|---|---|---|---|---|---|---|
|
|
HGN369-1-E | Netzfilter 1.0A, 120/250VAC, Version Standard |
|
1 A | 1 | Stk |
|
|
HGN369-2-E | Netzfilter 2.0A, 120/250VAC, Version Standard |
|
2 A | 1 | Stk |
|
|
HGN369-3-E | Netzfilter 3.0A, 120/250VAC, Version Standard |
|
3 A | 1 | Stk |
|
|
HGN369-4-E | Netzfilter 4.0A, 120/250VAC, Version Standard |
|
4 A | 1 | Stk |
|
|
HGN369-6-E | Netzfilter 6.0A, 120/250VAC, Version Standard |
|
6 A | 1 | Stk |
