Product features
Power Line Filter Series HGN Variant 375
Power line filter with device plug, switch and fuse holder (2 fuses 5x20mm). Connection for solder terminal or 6.3mm fast-on connector. Available as standard version or for medical applications
FEATURES

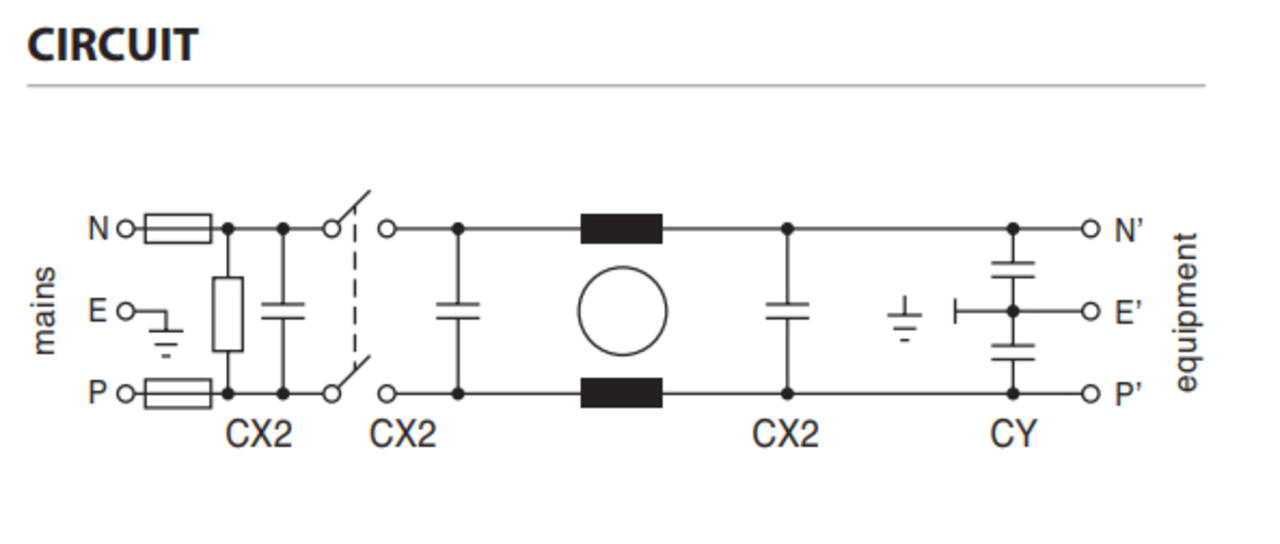

The HGN-375 power filter protects electronic devices from common-mode and differential-mode line disturbances in the range of 10 kHz up to 30 MHz. This “combo unit” consists of IEC plug, fuse holder for one or two 5 x 20 mm fuses, 2-pole ON/OFF switch and fully enclosed metal housing. These filters are also available for medical devices with low leakage current. The HGN-375 series filters are high-performance filters designed to bring various medical devices into compliance with EN55011 and FCC Part 15J, Class B for conducted emissions.
APPLICATIONS
Computer and network equipment, measurement and control instruments, data processing equipment, laboratory instruments, switch mode power supplies and other electronic equipment.
Detailed technical data can be found in the datasheets in the download area
Specifications & Downloads
- Nennspannung
- 120 VAC / 60Hz, 250 VAC / 50Hz
- Betriebstemperatur
- -25°C bis +85°C
- Anzahl Sicherungen
- 2 Sicherungen 5 x 20 mm
- Kabelanschlussart
- Lötanschluss, fast-on 6,3 x 0,8 mm
- Marke
- MPE-Garry
- Downloads
- hgn_375.pdf
Filter
| Amount | Item No. | Description | On stock | Nennstrom | Gerätestecker Ausführung | VE | Unit |
|---|---|---|---|---|---|---|---|
|
|
HGN375-1M-F2 | Netzfilter 1.0A, 120/250VAC, Version Medizin |
|
1 A | Medizin Version | 1 | Stk |
|
|
HGN375-1-F2 | Netzfilter 1.0A, 120/250VAC, Version Standard |
|
1 A | Standard Version | 1 | Stk |
|
|
HGN375-2M-F2 | Netzfilter 2.0A, 120/250VAC, Version Medizin |
|
2 A | Medizin Version | 1 | Stk |
|
|
HGN375-2-F2 | Netzfilter 2.0A, 120/250VAC, Version Standard |
|
2 A | Standard Version | 1 | Stk |
|
|
HGN375-4M-F2 | Netzfilter 4.0A, 120/250VAC, Version Medizin |
|
4 A | Medizin Version | 1 | Stk |
|
|
HGN375-4-F2 | Netzfilter 4.0A, 120/250VAC, Version Standard |
|
4 A | Standard Version | 1 | Stk |
|
|
HGN375-6M-F2 | Netzfilter 6.0A, 120/250VAC, Version Medizin |
|
6 A | Medizin Version | 1 | Stk |
|
|
HGN375-6-F2 | Netzfilter 6.0A, 120/250VAC, Version Standard |
|
6 A | Standard Version | 1 | Stk |
