934-THR-DS

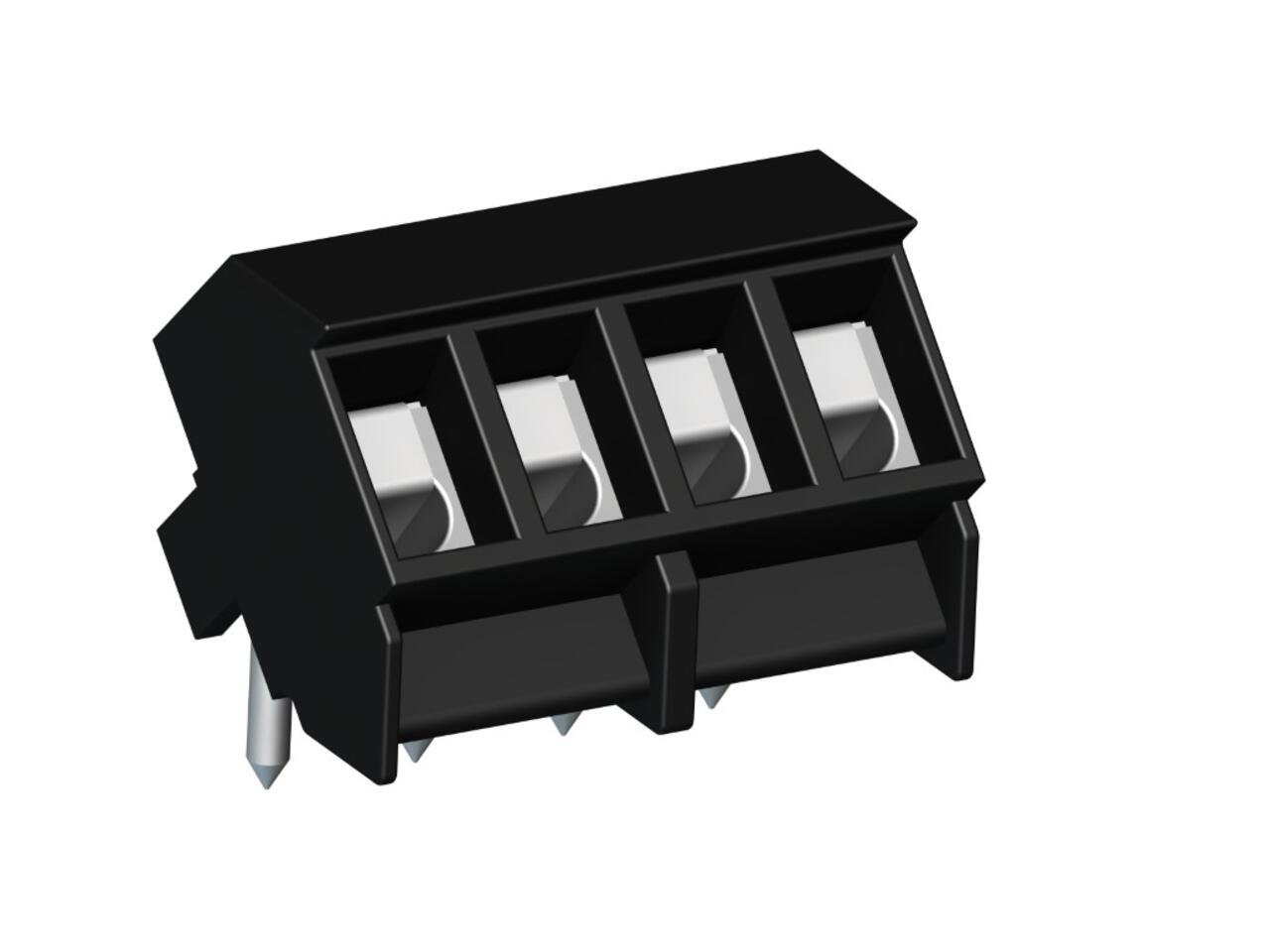

The 934-THR-DS is a reflow-compatible PCB terminal with 3.5 mm pitch and available with 2 to 12 poles. The wire entry is at a 45° angle to the PCB. This allows space-saving arrangement of terminal rows directly behind each other without losing poles in pitch. The housing made of high-temperature resistant plastic is equipped with stand-offs to improve hot air circulation in convection ovens during the reflow soldering process and enable optimal visual quality control of solder joints. The 934-THR terminal includes captive screws and wire protection as standard. For machine assembly, this PCB terminal is tape-on-reel packaged and has flat areas on the top side of the housing at the middle poles to provide a suction area for vacuum pick-up nozzles.
