Produkteigenschaften

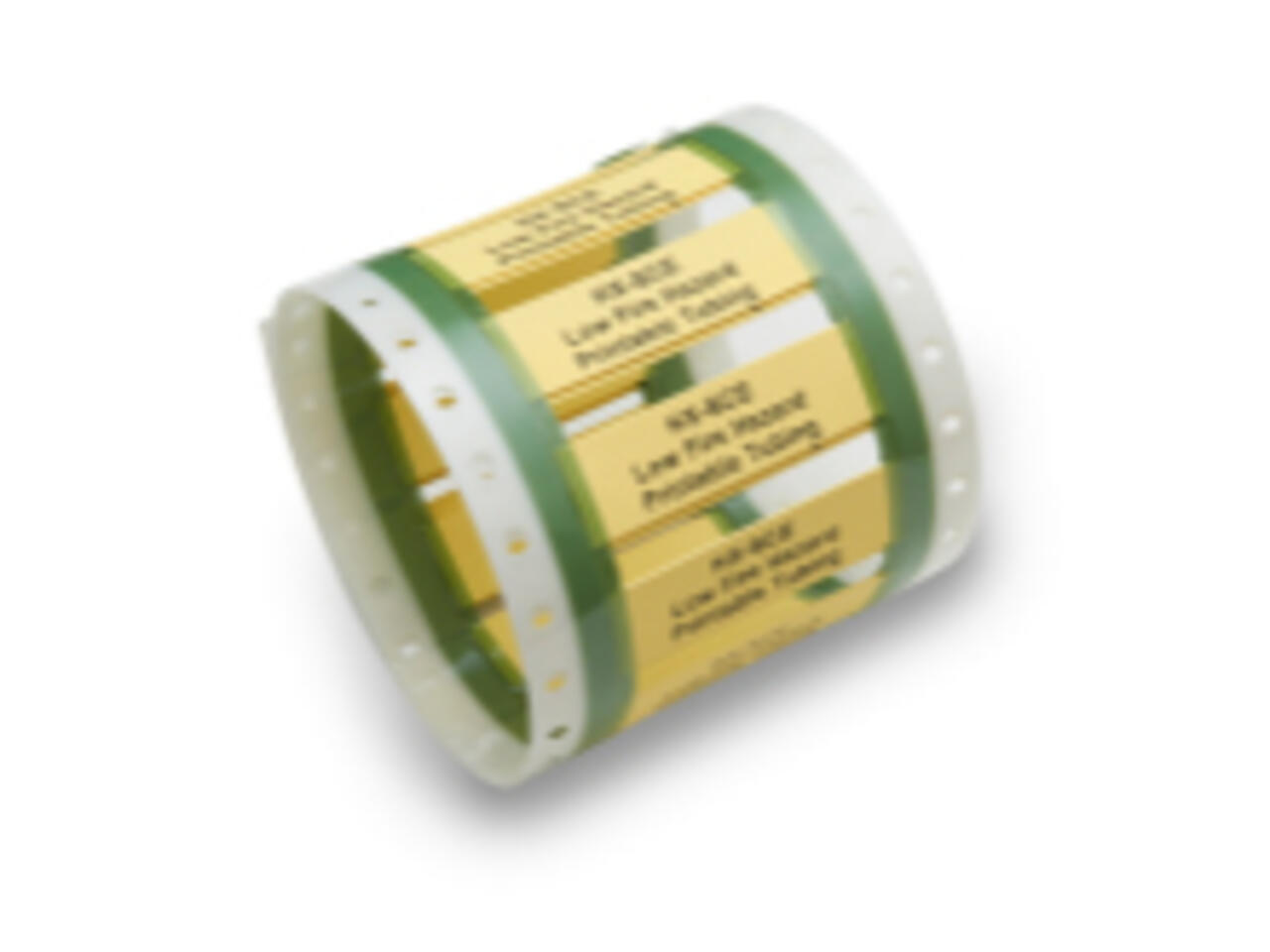

HX Low Fire Hazard (LFH) marker sleeves for the identification of wires and cables. Presented as cut sleeves organised in a ladder format.
Manufactured using a specially developed radiation cross-linked material. Formulated to give Low Fire Hazard properties, which allow this product to be used in locations where fire may pose a risk to
human life, and property. Typical installations include rail, mass transit, and heavy industrial.
HX (LFH) marker sleeves are available as part of a complete printing system. The system comprises specific printers, thermal transfer ribbons and WINTOTAL software.
Filter
| Menge | Art. Nr. | Bezeichnung | Lager | Innendurchmesser vor Schrumpf | Innendurchmesser nach Schrumpf | Nennquerschnitt | Farbe | Anzahl Perforierungen | VE | Einheit |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
HX-SCE-3.2-50-9 | A08104-000 |
|
3.2mm | 1.58mm | 1.77 - 2.66mm² | weiß | 0 | 250 | Stk |
|
|
HX-SCE-3.2-50-4 | A81929-000 |
|
3.2mm | 1.58mm | 1.77 - 2.66mm² | gelb | 0 | 250 | Stk |
|
|
HX-SCE-1K-9.5-50-4 | A95650-000 |
|
9.5mm | 4.75mm | 5.59 - 8.12mm² | gelb | 0 | 1'000 | Stk |
|
|
HX-SCE-9.5-50-9 | E34802-000 |
|
9.5mm | 4.75mm | 5.59 - 8.12mm² | weiß | 0 | 250 | Stk |
|
|
HX-SCE-1K-4.8-50-S3-4 | F02627-000 |
|
4.8mm | 2.36mm | 2.54 - 4.06mm² | gelb | 3 | 1'000 | Stk |
|
|
HX-SCE-1K-3.2-50-4 | F18659-000 |
|
3.2mm | 1.58mm | 1.77 - 2.66mm² | gelb | 0 | 1'000 | Stk |
|
|
HX-SCE-12.7-50-9 | F83810-000 |
|
12.7mm | 6.35mm | 6.99 - 10.79mm² | weiß | 0 | 250 | Stk |
